Port Injection Fuel Rail: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure that new fuel injector O-ring seals are installed.

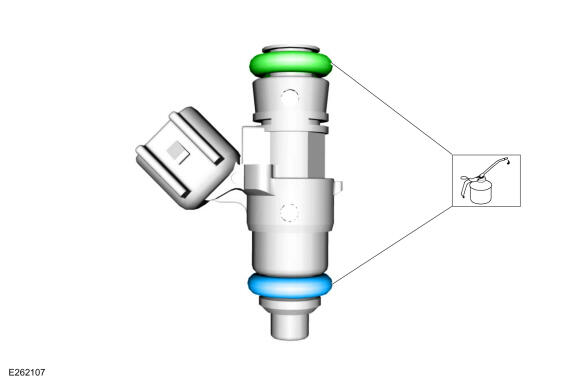

Install the new fuel injector O-ring seals. Lubricate the new fuel injector O-ring seals with clean engine oil. Refer to: Specifications .
-
NOTE: The fuel injector clip can be reused if it is not damaged during removal. If the clip is reused, the 2 sides of the clip should be squeezed back into shape by placing it between index finger and thumb.

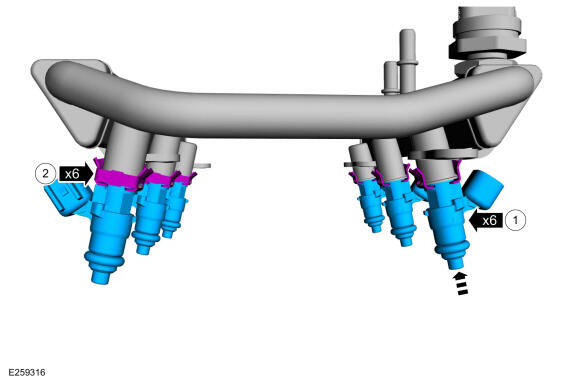

- Install the fuel injectors into the fuel rail.
- Install the fuel injector retaining clips.
-
NOTE: Some models may be equipped with Torx® head bolts.

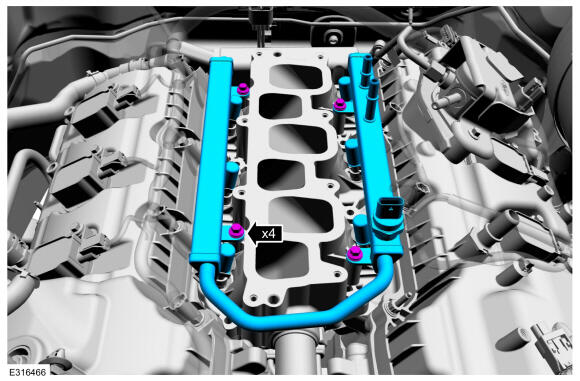

Install the fuel rail, then install and tighten the fuel rail retaining bolts in the following 2 stages.
Torque : Stage 1: Tighten to: : 10 Nm Stage 2: Tighten an additional: : 45deg.

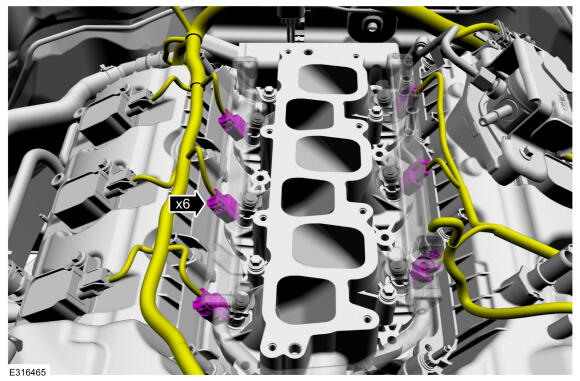

- Connect the fuel injector electrical connectors.

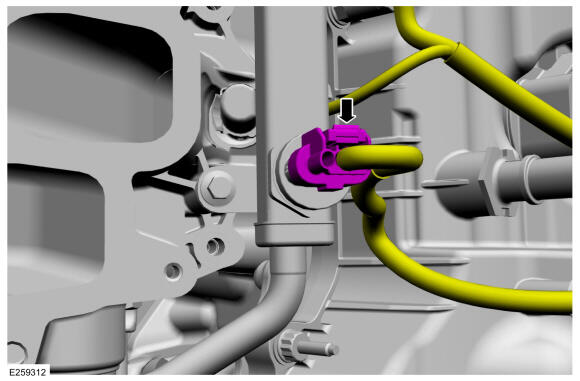

- Connect the electrical connector.

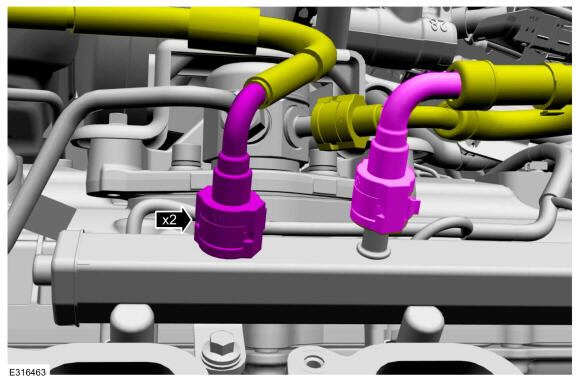

- Follow the directions for the quick release coupling type 10. Connect the fuel rail fuel tube quick release couplings. Refer to: Quick Release Coupling
.
- Install the upper intake manifold. Refer to: Upper Intake Manifold .
- Connect the battery negative cable. Refer to the appropriate Battery Disconnect and Connect in GENERAL PROCEDURES .
- Pressurize the fuel system. Refer to: Fuel System Pressure Release .
