Direct Injection Fuel Rail RH: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the direct injection fuel rail LH. Refer to: Direct Injection Fuel Rail LH
Detach the electrical connector retainer from the rear of the cylinder head, then disconnect the fuel injector main harness electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air to remove any dirt or foreign material from the cylinder head, the engine block, the general surrounding area of the fuel rail and the fuel injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the fuel injector by hand to break it loose may allow the fuel injector to be removed by hand.

NOTE: Should any of the fuel injectors remain in the head, then the fuel injector electrical connectors will need to be disconnected as the fuel rail is being removed.

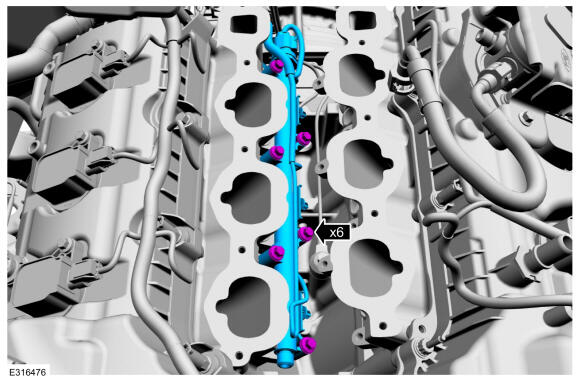

Remove the fuel rail bolts, then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY
Disconnect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY
Remove and discard the fuel injector clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

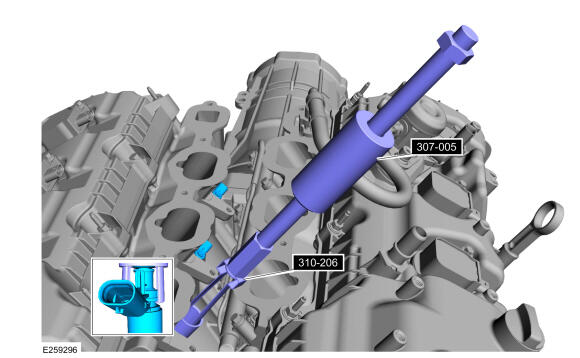

Using the special tools, remove any of the fuel injectors that remained in the cylinder head. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer, 310-206 Remover, Fuel Injector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, the engine block, the general surrounding area of the fuel rails and the fuel injectors.

NOTE: Do not use compressed air to clean the tip of the fuel injector.

NOTE: Do not use a brush to clean the tip of the fuel injector.

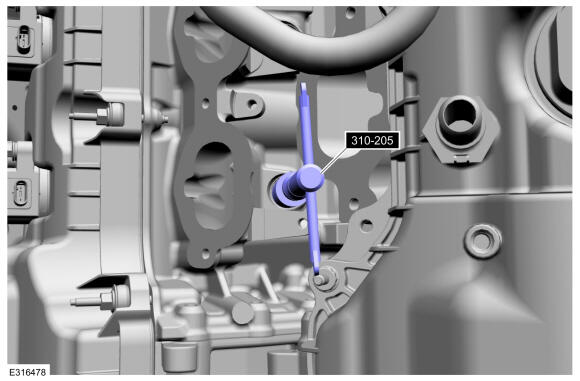

Using the special tool, clean the cylinder head fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY
