Exhaust Gas Recirculation (EGR) Outlet Tube: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the differential pressure feedback EGR sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .
- Loosen the EGR inlet tube fasteners.
-
- Loosen the EGR inlet tube nut.
- Loosen the EGR inlet tube bracket fastener.

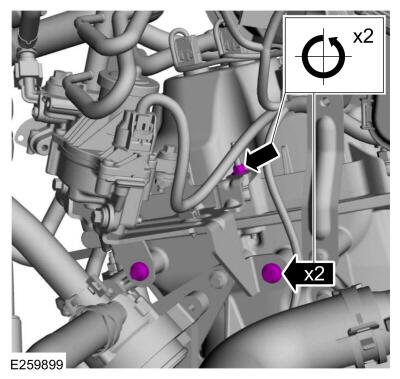

- Loosen the EGR valve bracket fasteners.

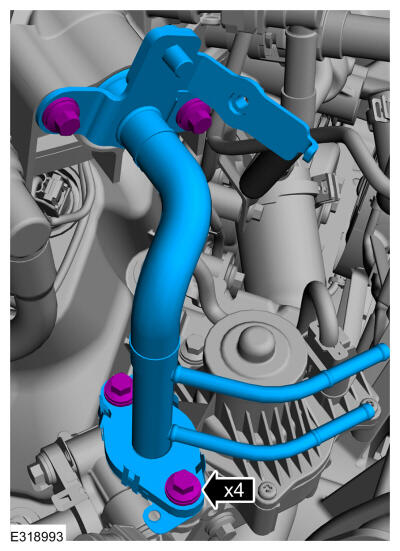

- Remove the fasteners and EGR valve outlet tube.
-

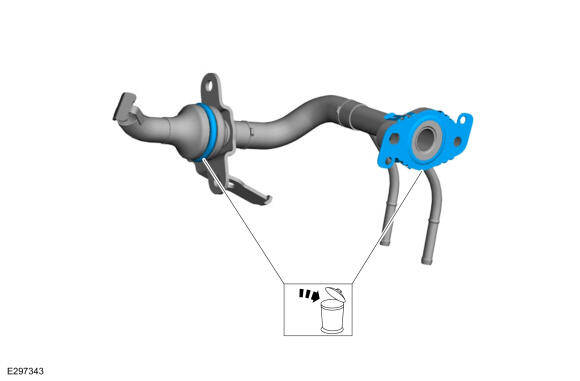

- Remove and discard the EGR tube o-ring seal and gasket.
