Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

- Install the new o-ring.

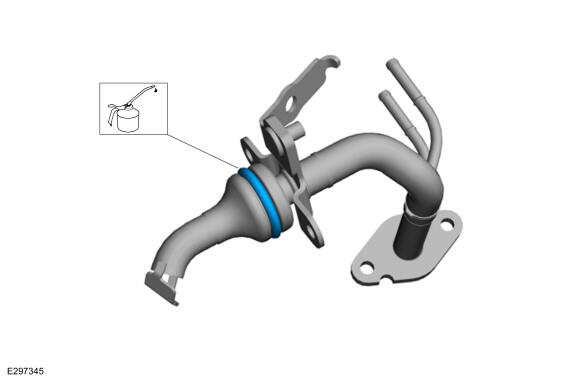

- Lubricate the o-ring seal with clean engine oil.
Courtesy of FORD MOTOR COMPANY
- Install the new gasket.
- Install the EGR valve outlet tube.
- Install the fasteners and hand tighten at this stage.
Courtesy of FORD MOTOR COMPANY

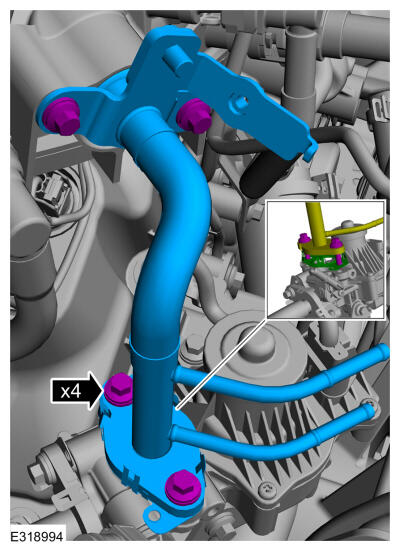

Tighten the EGR outlet tube fasteners.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

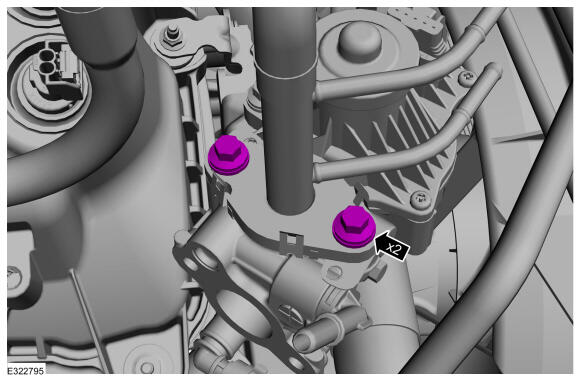

Tighten the EGR outlet tube fasteners.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

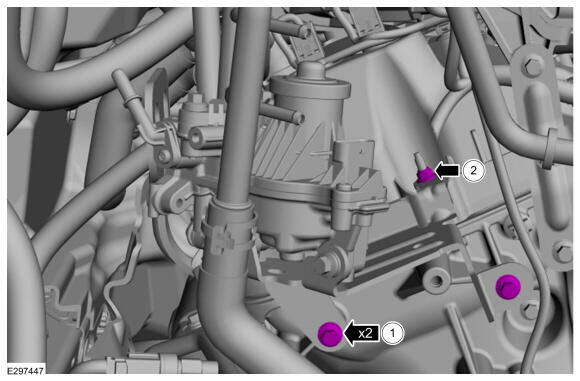

1. Tighten the EGR valve bracket fasteners.
  Torque: 10 Nm
2. Tighten the EGR valve bracket fastener.
  Torque: 8 Nm
Courtesy of FORD MOTOR COMPANY

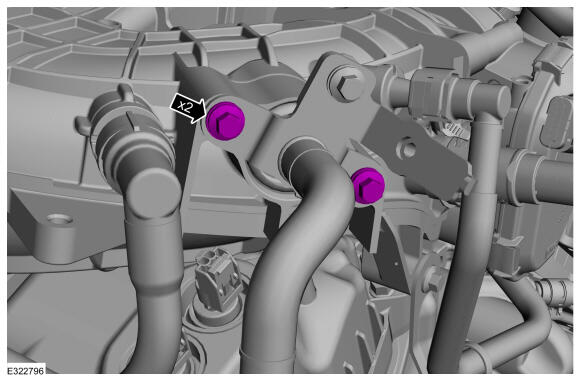

Tighten the EGR inlet tube fasteners.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
1. Tighten the EGR inlet tube nut.
  Torque: 40 Nm
2. Tighten the EGR inlet tube bracket fastener.
  Torque: Stage 1: 20 Nm Stage 2: 45deg.
Courtesy of FORD MOTOR COMPANY
Install the differential pressure feedback EGR sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .
