Exhaust Gas Recirculation (EGR) Inlet Tube: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

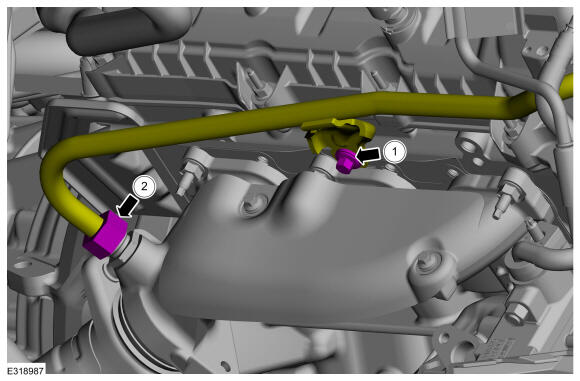

    1. Remove the fastener.
    2. Remove the EGR inlet tube nut.
    GFD839078Courtesy of FORD MOTOR COMPANY

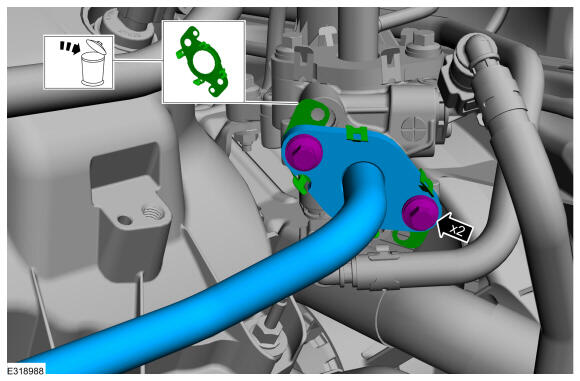

    • Remove the fasteners.

    • Remove the EGR valve inlet tube.

    • Remove the gasket and discard.

GFD839079Courtesy of FORD MOTOR COMPANY
