Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

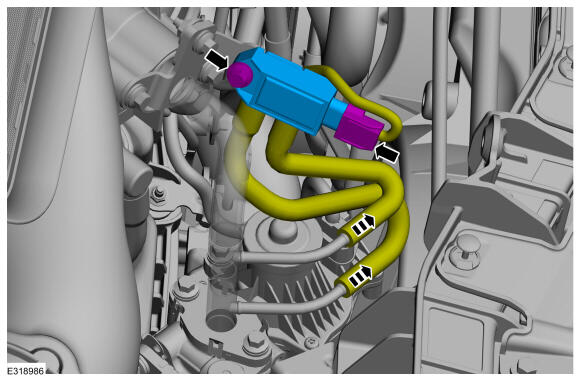

- Disconnect the electrical connector.
- Disconnect the differential pressure sensor hoses and position it aside.
- Remove the bolt and remove the differential pressure sensor.
  Torque: 9 Nm
