Engine Emission Control
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Engine Emission Control - Component Location

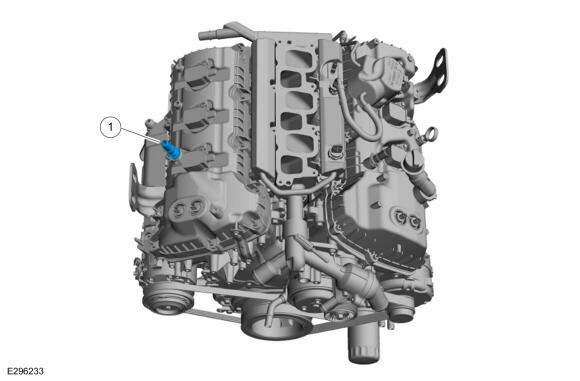

3.5L Duratec
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCV valve. |

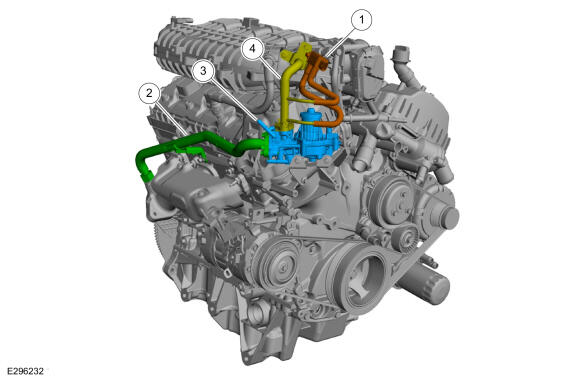

EGR system
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
EGR Differential pressure feedback sensor. |
| 2 |
EGR inlet tube. |
| 3 |
EGR valve. |
| 4 |
EGR outlet tube. |
