Valve Cover LH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

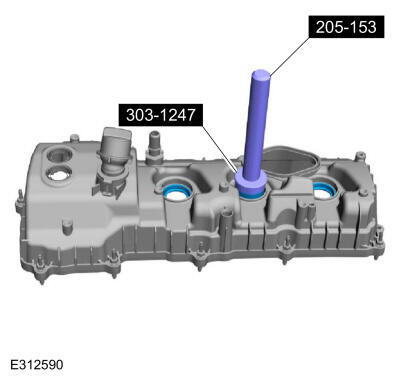

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the spark plug tube seals.Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD838521Courtesy of FORD MOTOR COMPANY

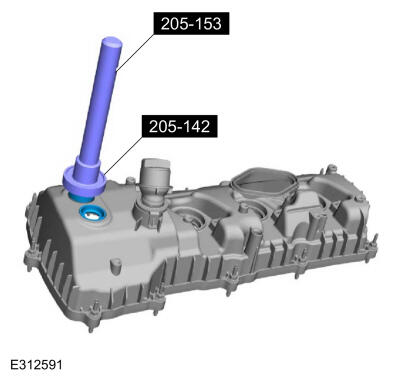

  2. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the VCT oil control solenoid seals.Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD838522Courtesy of FORD MOTOR COMPANY

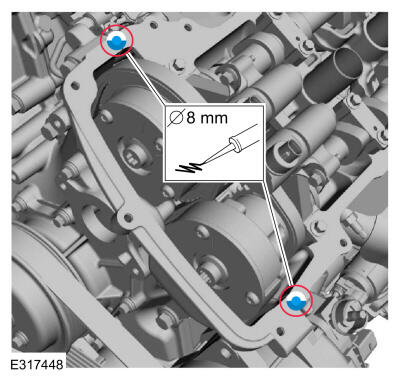

  3. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) drop of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: RTV silicone sealant (WSE-M4G323-A6)

    GFD838523Courtesy of FORD MOTOR COMPANY

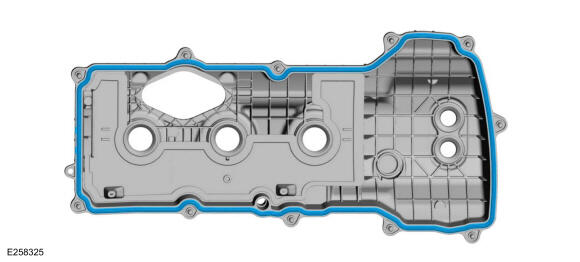

  4. Install a new valve cover gasket.
    GFD838524Courtesy of FORD MOTOR COMPANY

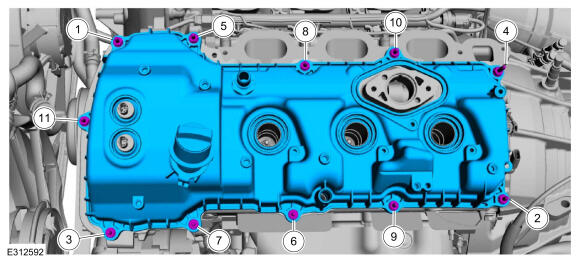

  5. Install the valve cover and tighten the bolts.

    Torque: 10 Nm

    GFD838525Courtesy of FORD MOTOR COMPANY
  6. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
    GFD837869Courtesy of FORD MOTOR COMPANY

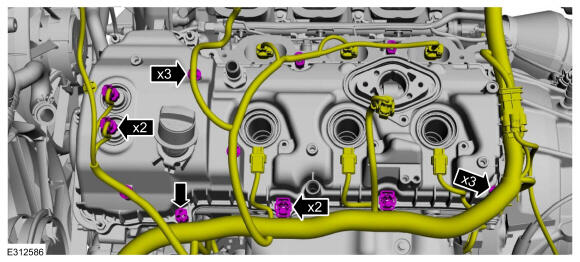

    • Position the wiring harness and attach the wiring harness retainers.

    • Connect the VCT oil control solenoid electrical connectors.

    GFD838515Courtesy of FORD MOTOR COMPANY
  8. Install the following items:

    1. Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
    2. Install the LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

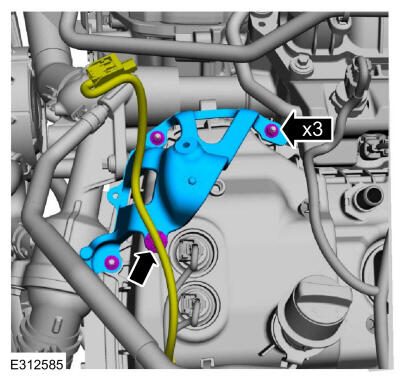

    • Install the brake vacuum tube bracket and the nuts.

      Torque: 7 Nm

    • Attach the wiring harness retainer.

    GFD838514Courtesy of FORD MOTOR COMPANY

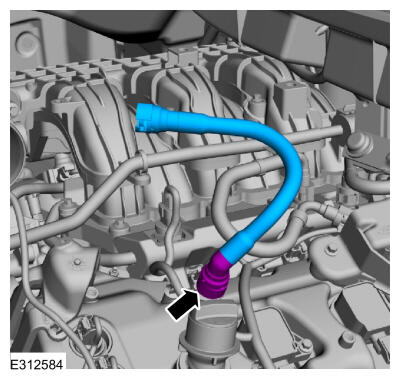

  10. Follow directions to connect the quick release coupling type 3. Install the crankcase vent tube. Refer to: QUICK RELEASE COUPLING
    GFD838513Courtesy of FORD MOTOR COMPANY
  11. Install the oil level indicator.
    GFD838440Courtesy of FORD MOTOR COMPANY
    • Follow directions to connect the quick release coupling type 5. Position the brake vacuum tubes and install the bolt. Refer to: QUICK RELEASE COUPLING Quick Release Coupling (310-00H).

      Torque: 7 Nm

    • Connect the brake vacuum hose to the upper intake manifold.

    GFD838501Courtesy of FORD MOTOR COMPANY

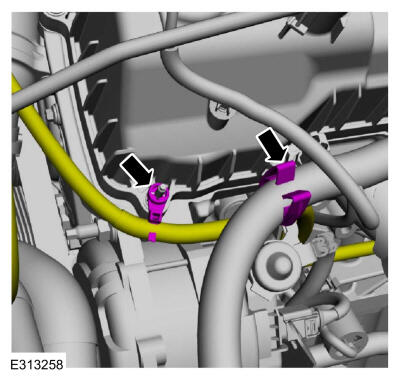

  13. If equipped with block heater, attach block heater wiring harness retainers.
    GFD838512Courtesy of FORD MOTOR COMPANY
  14. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12H).
