Upper Intake Manifold: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Inspect the intake manifold for damage or metal debris.

    GFD838509Courtesy of FORD MOTOR COMPANY
  2. Install the upper intake manifold and the bolts.

    Torque: Stage 1: 10 Nm Stage 2: 45deg.

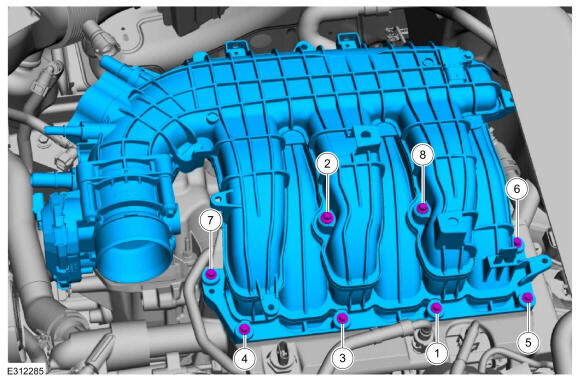

    GFD838510Courtesy of FORD MOTOR COMPANY
  3. Install the following items:

    1. Install the EGR valve outlet tube. Refer to: Exhaust Gas Recirculation (EGR) Outlet Tube .
    2. Install the differential pressure feedback EGR valve sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .

  4. Connect the MAPT sensor electrical connector and wiring harness retainers.
    GFD838506Courtesy of FORD MOTOR COMPANY
  5. Follow directions to connect the quick release coupling type 3. Connect the PCV tube quick connect coupling from the intake manifold. Refer to: QUICK RELEASE COUPLING
    GFD838505Courtesy of FORD MOTOR COMPANY
    • Install the upper intake manifold support bracket bolt.

      Torque: 10 Nm

    • NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.

      Connect the throttle body electrical connector and attach the wire harness retainer.

    GFD838504Courtesy of FORD MOTOR COMPANY
    • Position and attach the EVAP canister purge valve.

    • Attach the EVAP canister purge valve tube retainers.

    • Follow directions to connect the quick release coupling type 17. Connect the EVAP canister purge valve tube quick connect coupling from the intake manifold. Refer to: QUICK RELEASE COUPLING

    GFD838503Courtesy of FORD MOTOR COMPANY
  8. Position the crankcase vent tube towards the intake manifold.

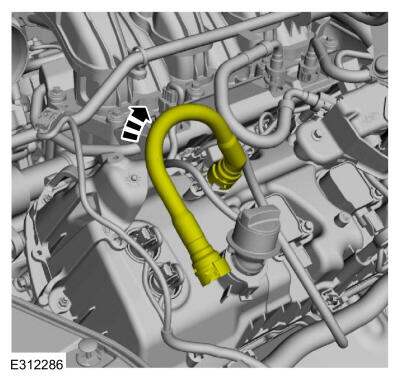

    GFD838511Courtesy of FORD MOTOR COMPANY
    • Follow directions to connect the quick release coupling type 5. Position the brake vacuum tubes and install the bolt. Refer to: QUICK RELEASE COUPLING

      Torque: 7 Nm

    • Connect the brake vacuum hose to the upper intake manifold.

    GFD838501Courtesy of FORD MOTOR COMPANY
  10. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  11. If a new intake manifold was installed, road test the vehicle.
