Timing Chain Tensioner: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- Remove the engine front cover. Refer to: Engine Front Cover .

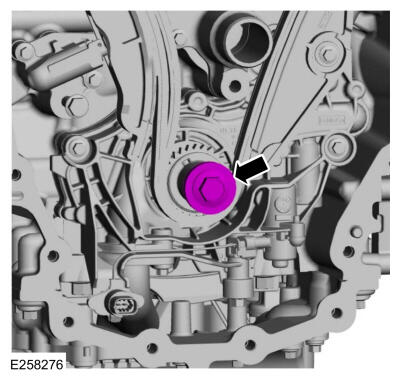

- Install the original crankshaft pulley bolt and washer.
-
NOTE: Rotate the crankshaft in a clockwise direction only.

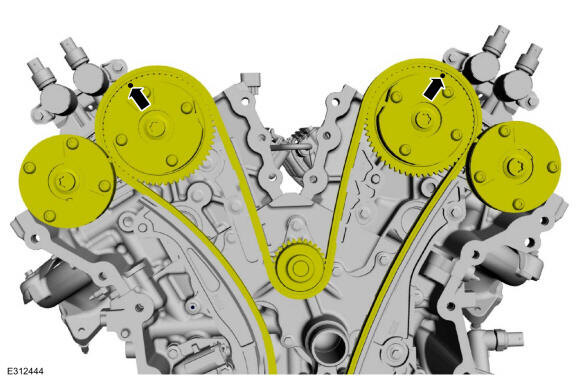

Using the crankshaft bolt, rotate the crankshaft clockwise and align the timing marks on the intake VCT units as shown.
- Remove the bolts and the LH oil tube.
-
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.
Install Special Service Tool: 303-1248 Camshaft holding tools.
- Remove the bolts and the RH oil tube.
-
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.
Install Special Service Tool: 303-1248 Camshaft holding tools.
- Remove the bolts and the timing chain tensioner.
