Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to: Transmission - LHD RWD . Refer to: Transmission - LHD AWD .

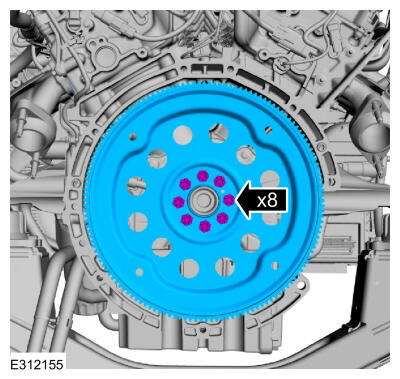

  2. Remove the bolts and the flexplate.
GFD838424Courtesy of FORD MOTOR COMPANY
