Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

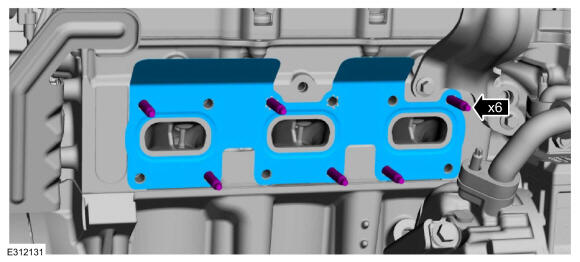

- Install the new exhaust manifold studs.
  Torque: 12 Nm
- Install the new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY

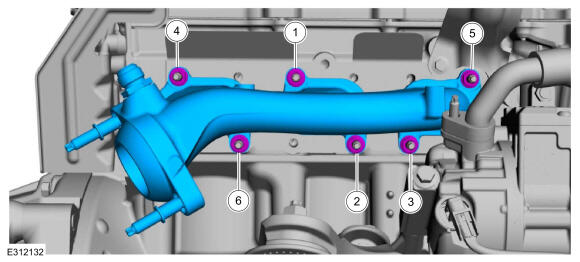

Install the exhaust manifold and the new nuts and tighten in 2 stages.
Torque: Stage 1: 19 Nm Stage 2: 25 Nm

Courtesy of FORD MOTOR COMPANY

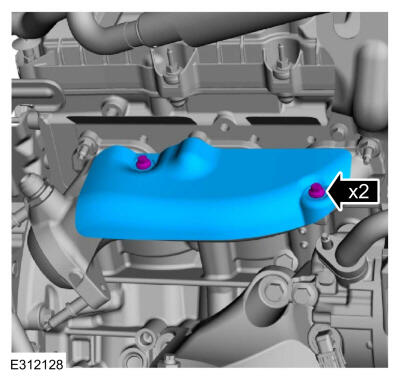

Install the exhaust manifold heat shield and the bolts.
Torque: 12 Nm

Courtesy of FORD MOTOR COMPANY
Install the EGR inlet tube. Refer to: Exhaust Gas Recirculation (EGR) Inlet Tube .
Position the RH catalytic converter and install new flange nuts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY
Install the LH catalytic converter flange and new nuts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY
Attach the exhaust hanger and install the exhaust flange bolts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY
Connect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
Connect the LH HO2S, catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Start and check the exhaust system for leaks.
