Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY

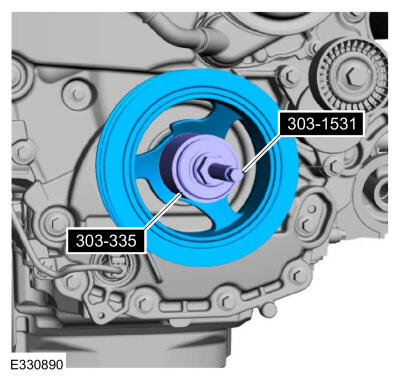

Using the special tools, install the crankshaft pulley.Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper., 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

Courtesy of FORD MOTOR COMPANY

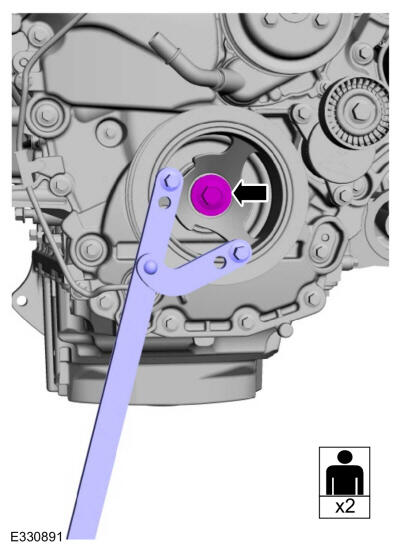

NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

Using a universal pulley holder, install and tighten a new crankshaft pulley bolt and the washer and tighten in 3 stages.

Torque: Stage 1: 50 Nm Stage 2: 90deg. Stage 3: 60deg.

Courtesy of FORD MOTOR COMPANY
Install the cooling module. Refer to: Cooling Module .
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt - Vehicles With: Single Generator .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
