Transmission Fluid Temperature (TFT) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. Refer to: Main Control Valve Body
  2. Disconnect the TFT sensor.

    1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.

    GFD839569Courtesy of FORD MOTOR COMPANY

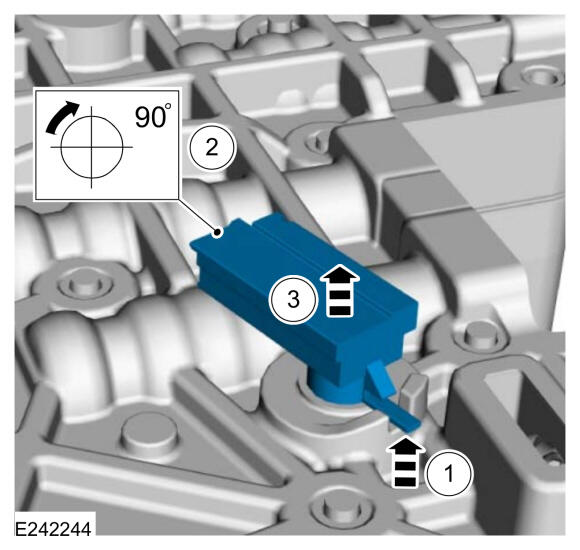

  3. Remove the TFT sensor.

    1. Lift plastic tab.
    2. Rotate the TFT sensor clockwise.
    3. Remove the TFT sensor.

GFD839570Courtesy of FORD MOTOR COMPANY
