Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

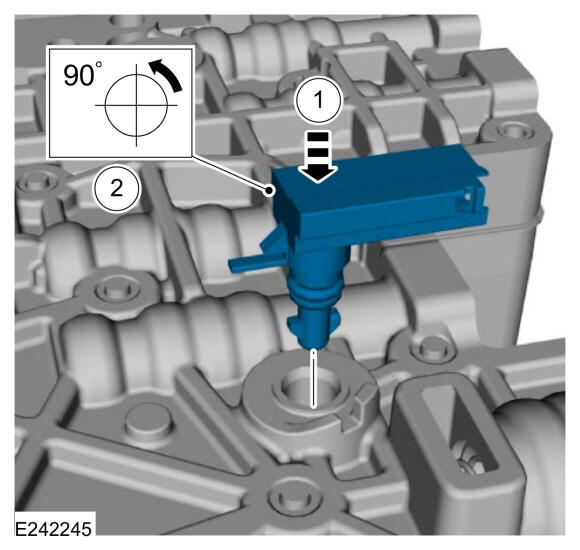

  1. Install the TFT sensor.

    1. Position the TFT sensor in the main control valve body.
    2. Rotate the TFT sensor counter clockwise until the plastic tab locks into place.

    GFD839571Courtesy of FORD MOTOR COMPANY

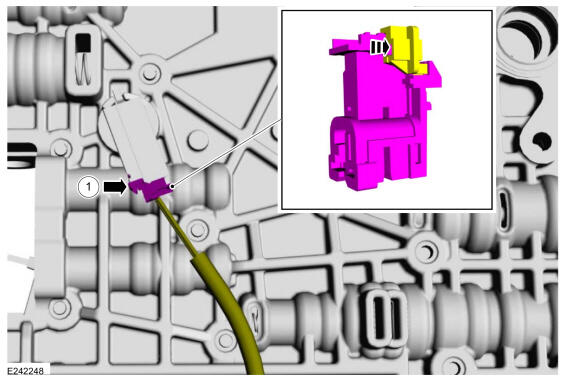

  2. Connect the TFT sensor.

    1. Slide the plastic lock to the locked position.

    GFD839572Courtesy of FORD MOTOR COMPANY
  3. Install the main control valve body. Refer to: Main Control Valve Body
