Transmission Fluid Pump Idler Gear: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

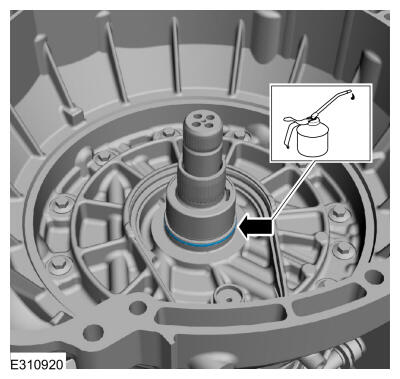

  1. Install the new stator support seal on the front support. Lubricate the stator support seal with petroleum jelly.
    GFD839557Courtesy of FORD MOTOR COMPANY
  2. Using the special tool and a press, install the new transmission fluid pump idler gear bearing.Use Special Service Tool: 307-736 Installer, Pump Drive Gear Bearing.Use the General Equipment: Hydraulic Press
    GFD839558Courtesy of FORD MOTOR COMPANY

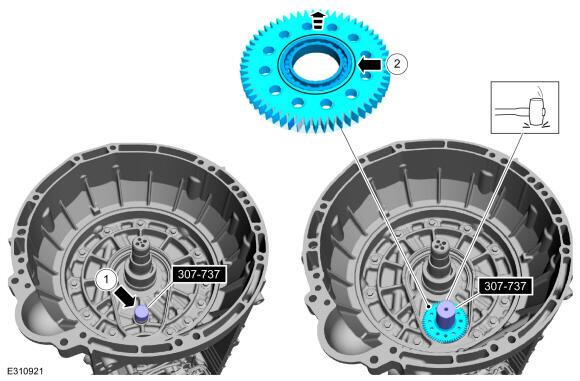

    1. Position the special tool on the front support.Use Special Service Tool: 307-737 Press Tool, Oil Pump Drive Idler Gear.
    2. NOTE: Install the transmission fluid pump idler gear with the grooved side up.
    3. NOTE: Verify the front pump idler gear and bearing cannot be pushed onto the front support by hand. If the gear and bearing can be pushed onto the front support by hand, replace the front support.

      Using the special tools and a dead blow hammer, install the new transmission fluid pump idler gear and bearing.

    GFD839559Courtesy of FORD MOTOR COMPANY

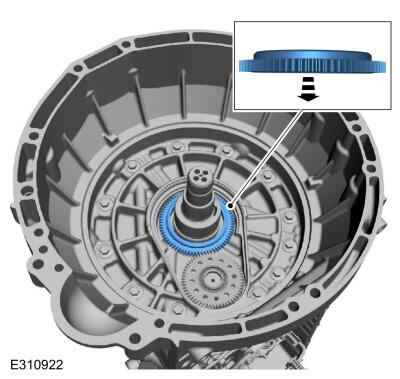

  4. Install the new transmission fluid pump drive gear with the flat side down.
    GFD839560Courtesy of FORD MOTOR COMPANY

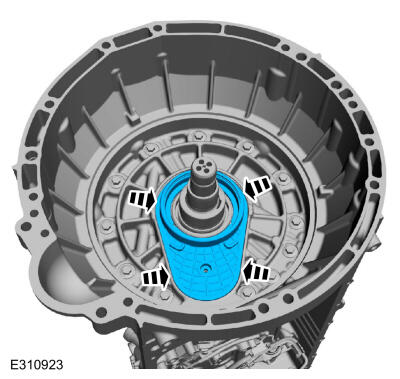

  5. Install the front support cover by pressing down evenly by hand.
    GFD839561Courtesy of FORD MOTOR COMPANY

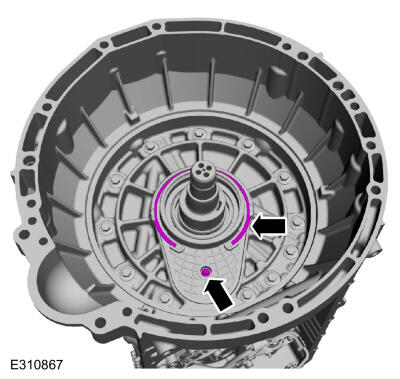

  6. NOTE: The front support cover snap ring ends are located in the cover alignment features.

    Install the front support cover bolt and the front support cover snap ring.

    Torque: 7 Nm

    GFD839551Courtesy of FORD MOTOR COMPANY
  7. Install the new torque converter hub seal on the special tools.Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD839429Courtesy of FORD MOTOR COMPANY

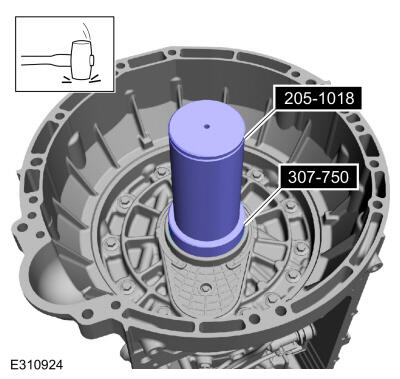

  8. Using the special tools, install the new torque converter hub seal.Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD839562Courtesy of FORD MOTOR COMPANY

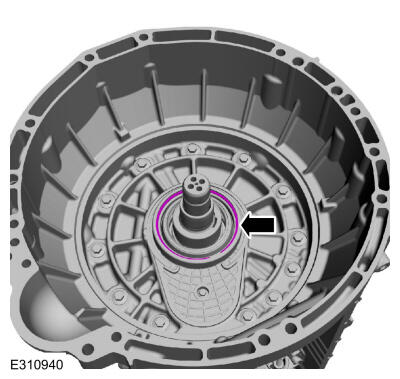

  9. Install the torque converter hub seal snap ring.
    GFD839563Courtesy of FORD MOTOR COMPANY
  10. Using the special tool, install the torque converter.Use Special Service Tool: 307-091 Handle, Torque Converter.
    GFD839357Courtesy of FORD MOTOR COMPANY
  11. Install the special tool to hold the torque converter.Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD839447Courtesy of FORD MOTOR COMPANY
    1. Install the new transmission fluid pump driven gear and the retaining ring.
    2. Install the transmission fluid pump driven gear outer cover.
    GFD839564Courtesy of FORD MOTOR COMPANY
  13. Install the transmission fluid pump and the bolts.

    Torque: 8 Nm

    GFD839372Courtesy of FORD MOTOR COMPANY

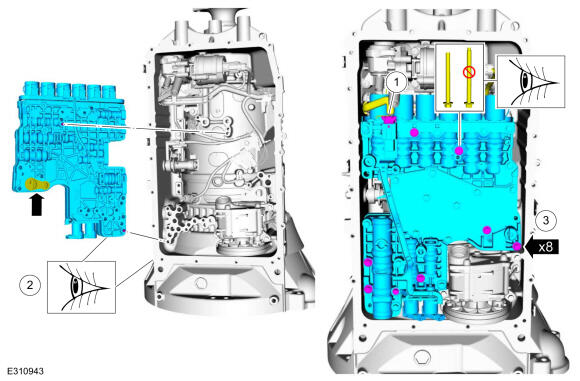

  14. NOTE: Do not install a 71 mm length bolt in the location shown or the transmission clutch and planetary container will be damaged and result in transmission failure.

    Loosely install the main control valve body.

    1. NOTE: Be sure the main control-to-case seal is attached to the main control.

      Connect the internal wiring harness electrical connector while installing the main control valve body.

    2. Align the guide pins on the main control valve body with the alignment holes in the transmission case.
    3. Loosely install the 68 mm length main control-to-transmission case bolts.

    GFD839565Courtesy of FORD MOTOR COMPANY
  15. Tighten the bolts in the sequence shown.

    Torque: 10 Nm

    GFD839449Courtesy of FORD MOTOR COMPANY
  16. Lock the main control main electrical connector.
    GFD839368Courtesy of FORD MOTOR COMPANY
  17. Install the new filter seal in the pump.
    GFD839453Courtesy of FORD MOTOR COMPANY

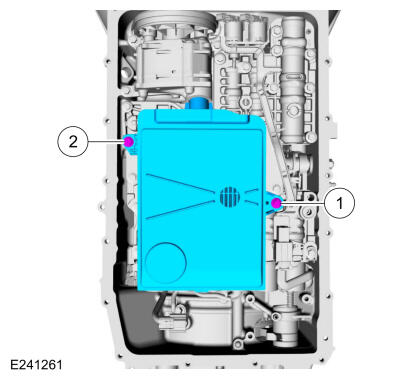

  18. NOTE: If the bolts are installed in the wrong locations, transmission damage will occur.

    Install the new filter and the bolts in the correct locations.

    1. Short bolt 20 mm
    2. Long bolt 71 mm

    • Torque

      : 10.5 Nm

    GFD839566Courtesy of FORD MOTOR COMPANY

    Auto-Start-Stop vehicles

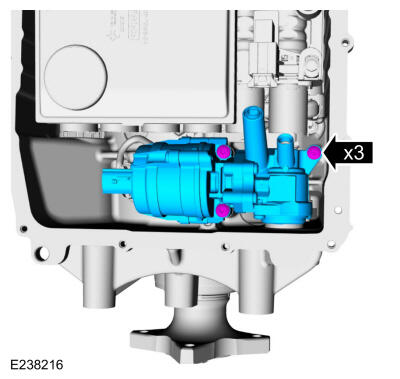

  19. Install the transmission fluid auxiliary pump and loosely install the bolts.
    GFD839546Courtesy of FORD MOTOR COMPANY

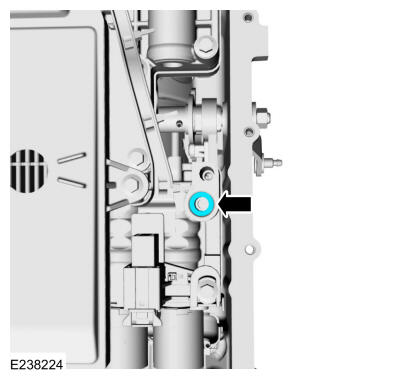

  20. Install the new transmission fluid auxiliary pump tube seal.
    GFD839567Courtesy of FORD MOTOR COMPANY
  21. Inspect the transmission fluid auxiliary pump tube O-ring.
    GFD839451Courtesy of FORD MOTOR COMPANY

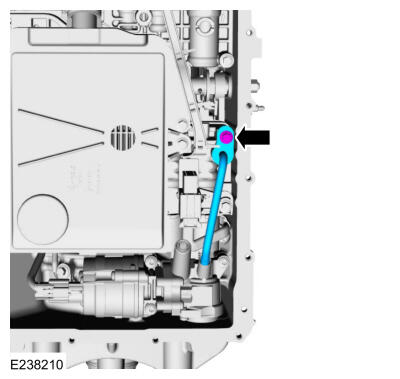

  22. Install the transmission fluid auxiliary pump tube and loosely install the bolt.
    GFD839543Courtesy of FORD MOTOR COMPANY

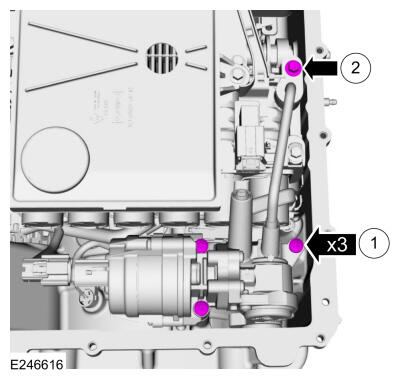

    1. Transmission fluid auxiliary pump bolts

      Torque: 11 Nm

    2. Transmission fluid auxiliary pump tube bolt

      Torque: 12 Nm

    GFD839568Courtesy of FORD MOTOR COMPANY

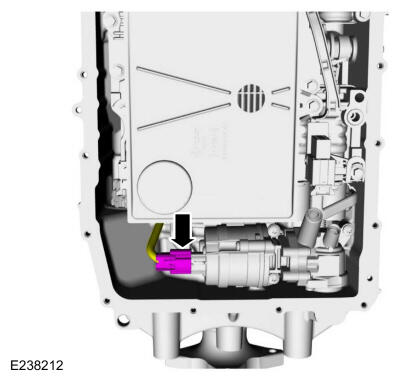

  24. Connect the transmission fluid auxiliary pump electrical connector.
    GFD839545Courtesy of FORD MOTOR COMPANY

    All vehicles

  25. Clean and inspect the magnet and the retainer.
    GFD839454Courtesy of FORD MOTOR COMPANY

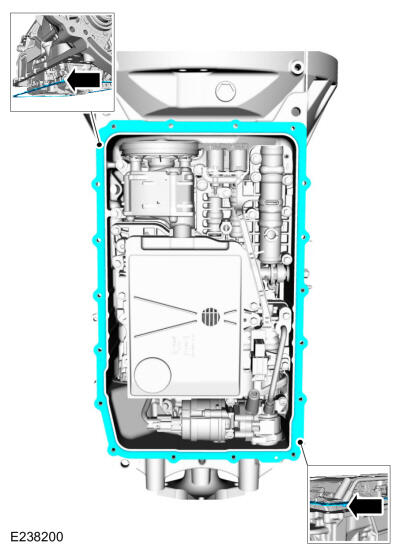

  26. NOTE: The transmission fluid pan gasket can be reused if not damaged.

    Align the tabs in the noted location and install the transmission fluid pan gasket.

    GFD839535Courtesy of FORD MOTOR COMPANY

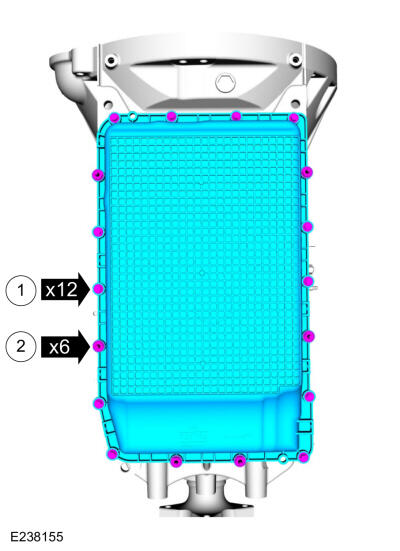

  27. Install the transmission fluid pan and tighten the bolts in a crisscross pattern.

    1. Bolts

      Torque: 10 Nm

    2. Studbolts

      Torque: 12 Nm

    GFD839541Courtesy of FORD MOTOR COMPANY

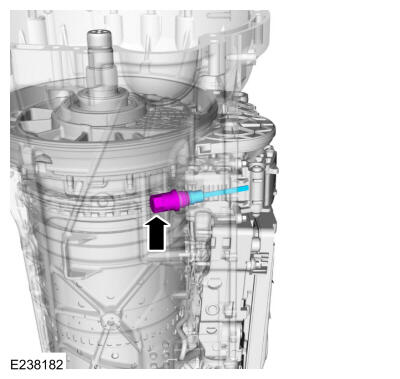

  28. Install the transmission fluid level indicator.

    Torque: 70 Nm

    GFD839542Courtesy of FORD MOTOR COMPANY
  29. To install the transmission assembly. Refer to: Transmission - LHD RWD
