Transmission - LHD RWD: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: GENERAL INFORMATION
Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY . Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES
Remove the following items:
1. Refer to: FRONT SUBFRAME
2. Remove the rear driveshaft. Refer to: REAR DRIVESHAFT
NOTE: Be prepared to collect escaping fluid.

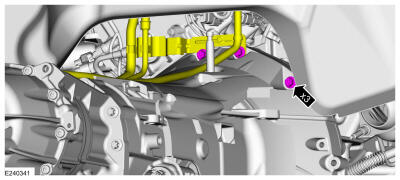

Remove the retainers, position aside and secure the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

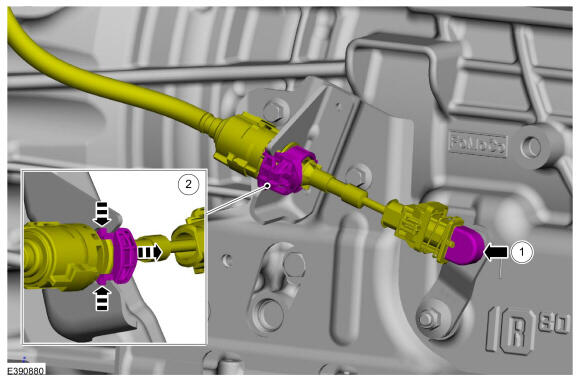

1. Disconnect the selector lever cable from the manual control lever.
2. Press the tabs, disconnect the selector lever cable from the bracket and position aside the selector lever cable.
Courtesy of FORD MOTOR COMPANY

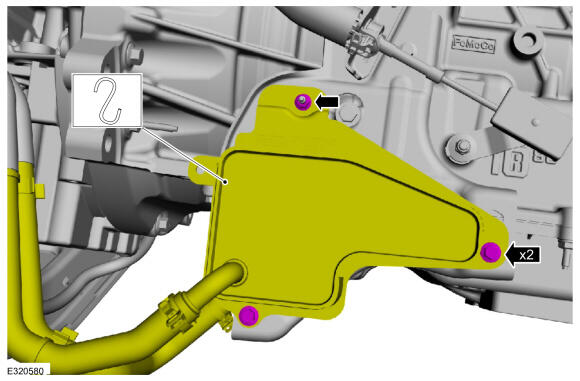

Remove the retainers and the transmission fluid cooler bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

NOTE: Be prepared to collect escaping fluid.

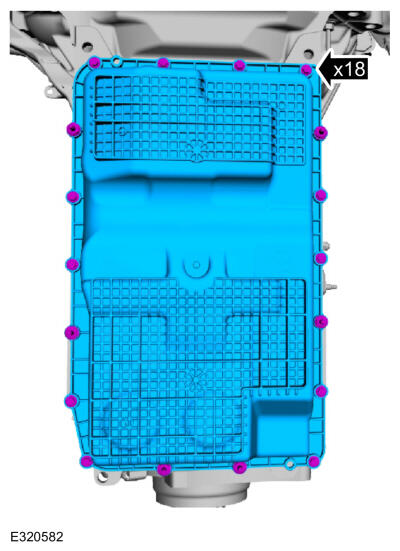

Remove the transmission fluid pan bolts and the transmission fluid pan and allow the transmission fluid to drain.

Courtesy of FORD MOTOR COMPANY
NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

Install the transmission fluid pan.

Courtesy of FORD MOTOR COMPANY
Remove the starter motor. Refer to: Starter Motor . Refer to: Starter Motor .

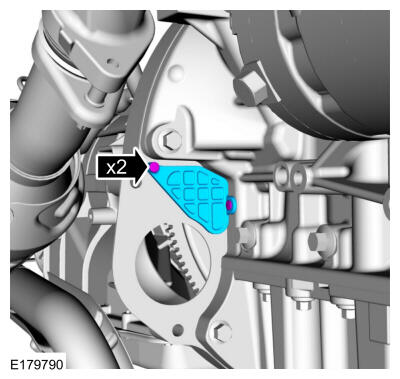

Remove the pin-type retainers and the access cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

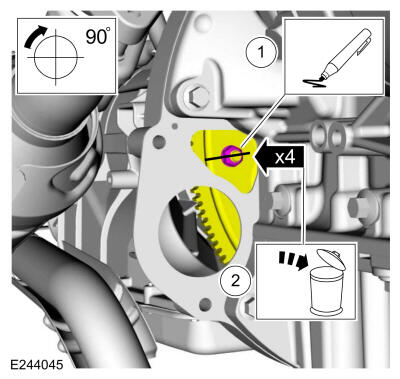

1. Index mark one stud and the flexplate for assembly reference.
2. Remove and discard the torque converter nuts.
Courtesy of FORD MOTOR COMPANY

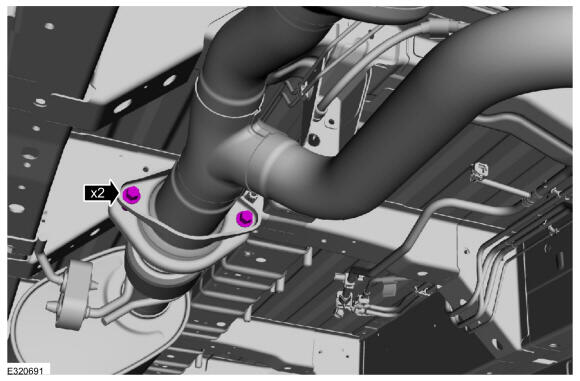

Remove the dual catalytic converter Y-pipe to muffler bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.

Using a high-lift transmission jack, support the transmission.Use the General Equipment: Transmission Jack
Remove the transmission support crossmember. Refer to: Transmission Support Insulator .

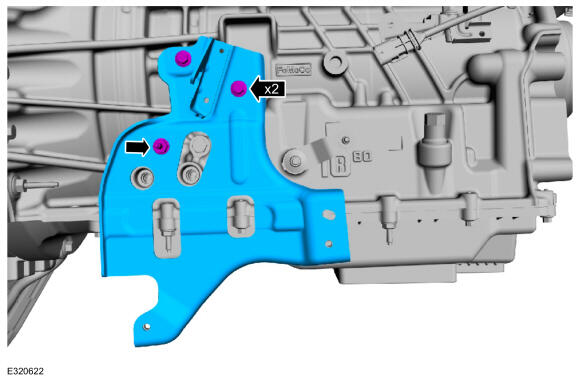

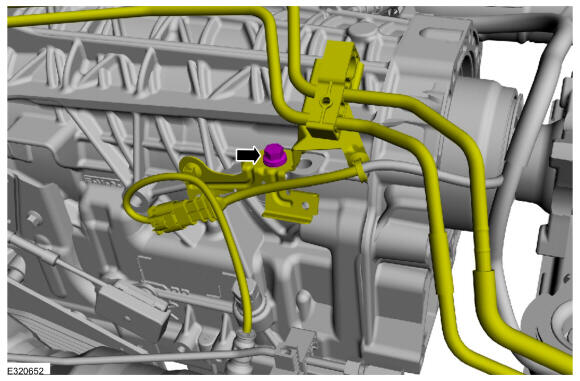

Remove the bolt and position aside the bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: To disconnect the electrical connector, slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector

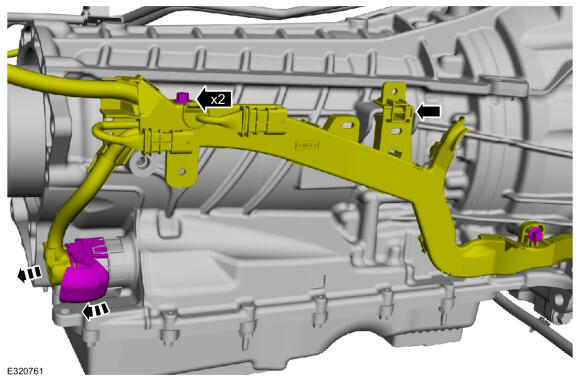

Disconnect the transmission electrical connector, remove the retainers and position the wiring away from the transmission.

Courtesy of FORD MOTOR COMPANY

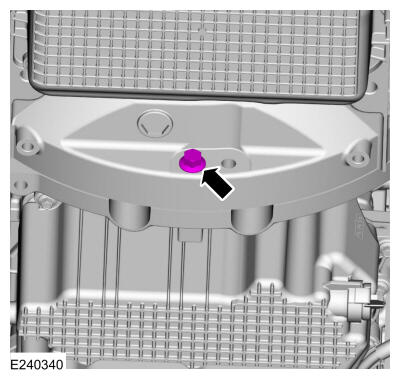

Remove the lower bellhousing bolt.

Courtesy of FORD MOTOR COMPANY
Remove the top bellhousing bolts and position aside the bracket.

Courtesy of FORD MOTOR COMPANY

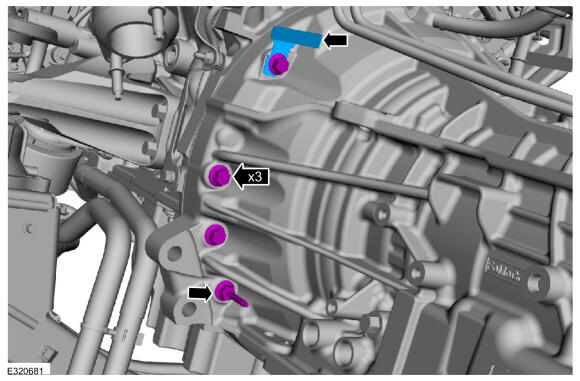

Remove the LH side bellhousing bolts and the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY

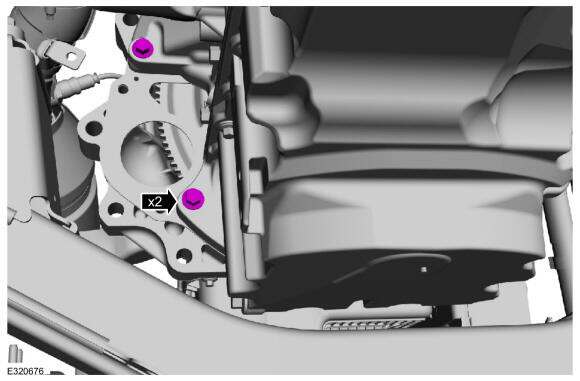

Remove the RH side bellhousing bolts.

Courtesy of FORD MOTOR COMPANY

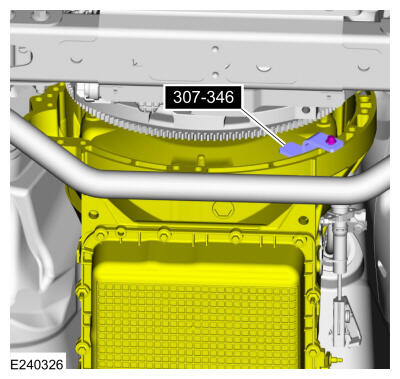

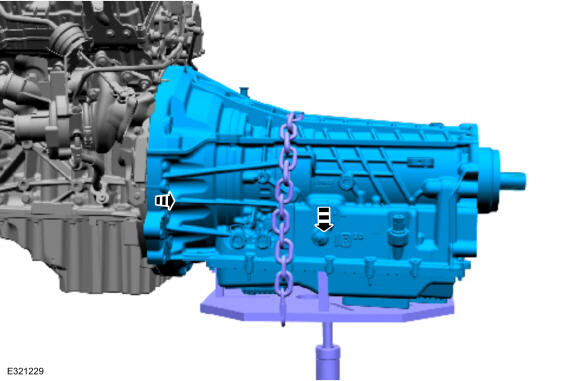

Slide the transmission back enough to install the special tool.

Courtesy of FORD MOTOR COMPANY
Using the high-lift transmission jack, remove the transmission from the vehicle.Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

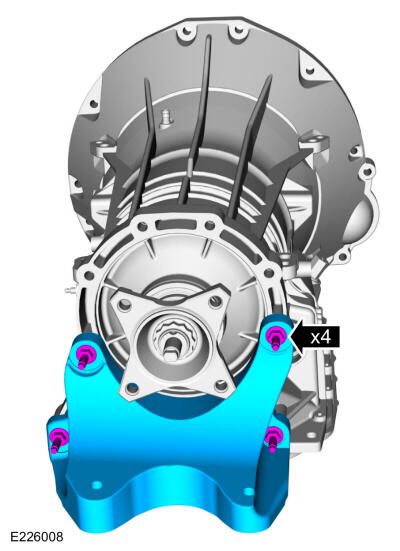

If installing a new or re-manufactured transmission, remove the bolts and bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
