Selector Shaft Seal: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

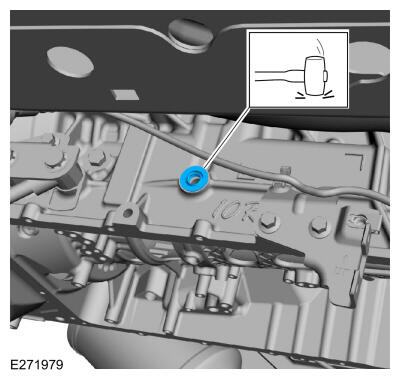

  1. Install the new selector shaft seal.Use the General Equipment: Rubber Mallet
    GFD839479Courtesy of FORD MOTOR COMPANY
  2. Install the TR sensor. Refer to: Transmission Range (TR) Sensor .
