Output Shaft Seal: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

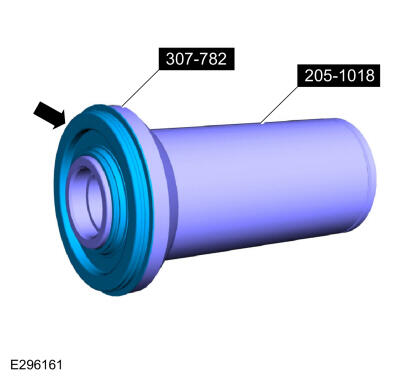

  1. Position a new output shaft seal on the special tools.Use Special Service Tool: 205-1018 Installation Tube., 307-782 Installer, Output Shaft Seal.
    GFD839472Courtesy of FORD MOTOR COMPANY

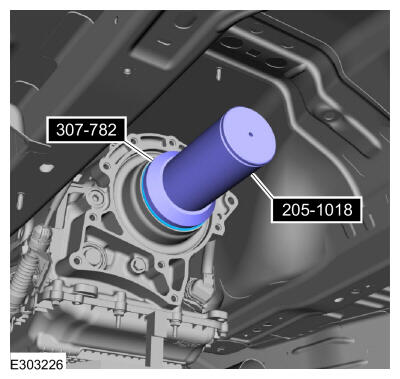

  2. Using the special tools, install the new output shaft seal.Use Special Service Tool: 205-1018 Installation Tube., 307-782 Installer, Output Shaft Seal.
    GFD839473Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  3. Install the transfer case assembly. Refer to: Transfer Case .

    Rear Wheel Drive (RWD) vehicles

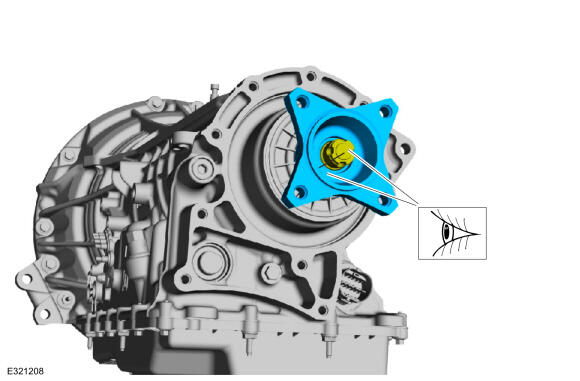

  4. NOTE: If the output shaft or output shaft flange are replaced with new parts, align lazer applied ink marks.

    Align the index marks made during removal.

    GFD839474Courtesy of FORD MOTOR COMPANY

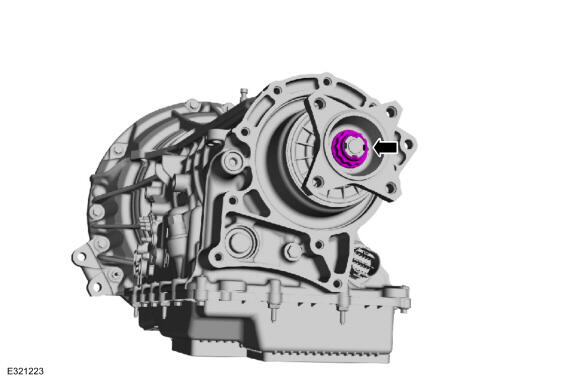

  5. Install the new output shaft flange retaining nut.

    Torque: 80 Nm

    GFD839475Courtesy of FORD MOTOR COMPANY
  6. After installing the new output shaft flange retaining nut, stake the slots to prevent it from coming loose.Use the General Equipment: Punch
    GFD839468Courtesy of FORD MOTOR COMPANY
  7. Install the rear driveshaft. Refer to: AXLE ASSEMBLY

    All vehicles

  8. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
