Main Control Valve Body: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Solenoid Body Strategy Data Download procedure must be performed if a new main control valve body is installed.

NOTE: If a main control valve body overhaul is carried out or a new SS is installed, carry out the adaptive learning drive cycle procedure at the end of the repair.

Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .

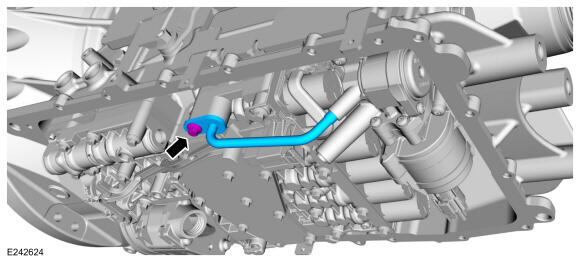

If equipped, remove the bolt and the transmission fluid auxiliary pump tube.

Courtesy of FORD MOTOR COMPANY

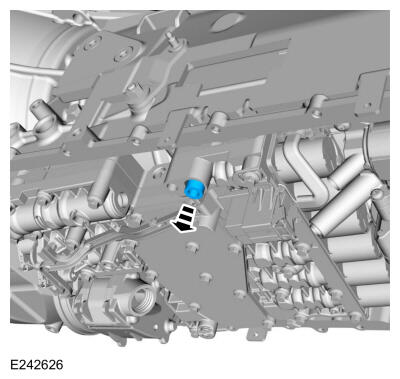

If equipped, remove the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
NOTE: The internal wiring harness electrical connector can not be fully disconnected until lowering the main control valve body.

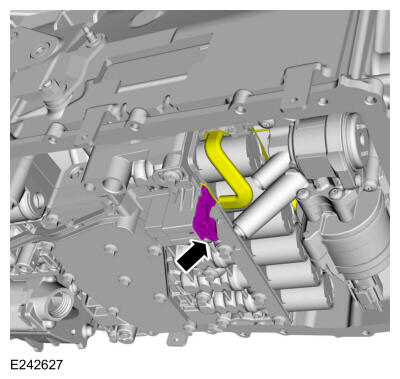

Unlock the internal wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY

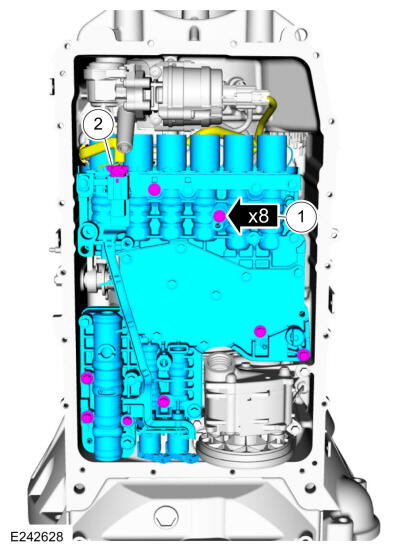

Remove the main control valve body.
1. While supporting the main control valve body, remove the main control-to-transmission case bolts.
2. Disconnect the internal wiring harness electrical connector while removing the main control valve body.
  Click here to view a video version of this step.

  multimedia:A supplement to the article is available.
Courtesy of FORD MOTOR COMPANY

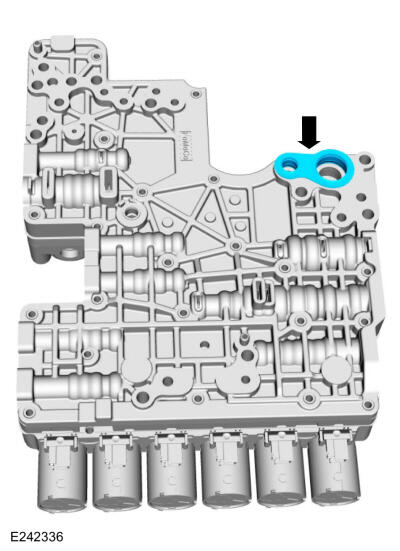

Remove the main control assembly to transmission fluid pump seal.

Courtesy of FORD MOTOR COMPANY
