Intermediate Speed Sensor B (ISSB): Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

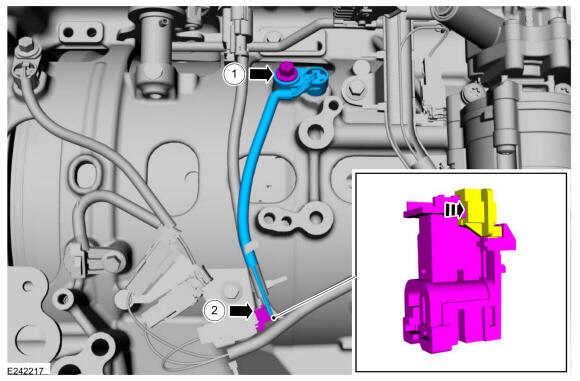

  1. Install the intermediate speed sensor B.

    1. Install the intermediate speed sensor B bolt.

      Torque: 11 Nm

    2. Connect the electrical connector. Slide the plastic lock to the locked position.

    GFD839458Courtesy of FORD MOTOR COMPANY
  2. Install the main control valve body. Refer to: Main Control Valve Body
