Intermediate Speed Sensor A (ISSA): Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. Refer to: Main Control Valve Body

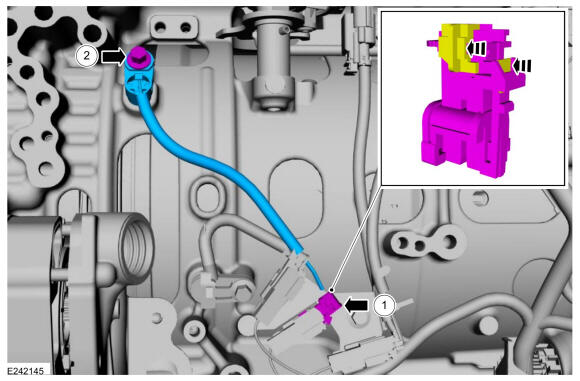

  2. Remove the intermediate speed sensor A.

    1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
    2. Remove the bolt and the intermediate speed sensor A.

GFD839455Courtesy of FORD MOTOR COMPANY
