Main Control Valve Body

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-299Alignment Pins, Valve Body

1. For solenoid and valve identification. Refer to: Main Control Valve Body .

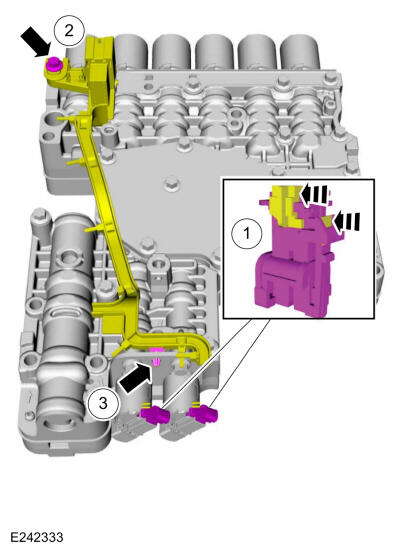

2. Disconnect the internal wiring harness.
   1. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
   2. Remove internal wiring harness retaining bolt.
   3. Disconnect the internal wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

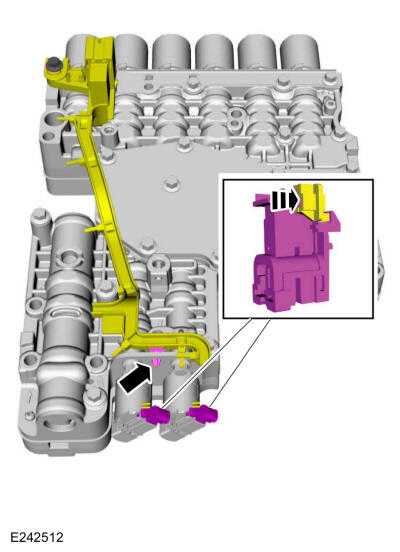

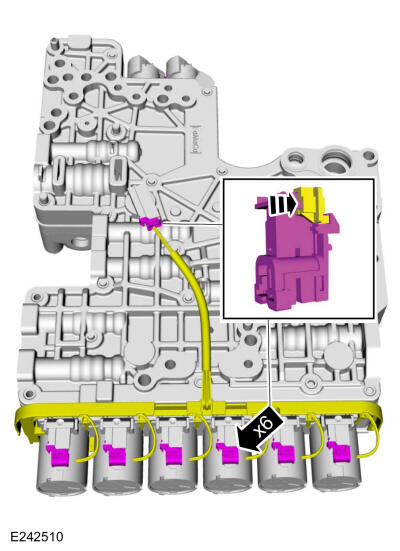

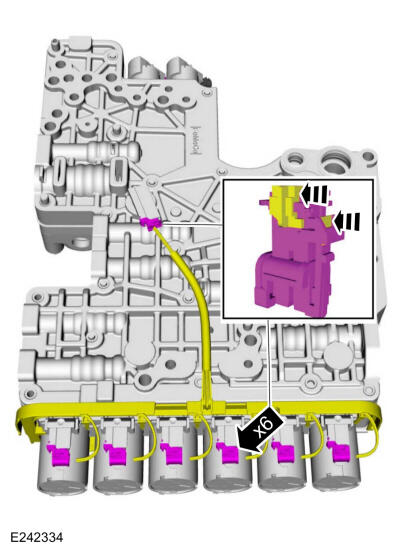

3. Disconnect the internal wiring harness electrical connectors.
   • Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

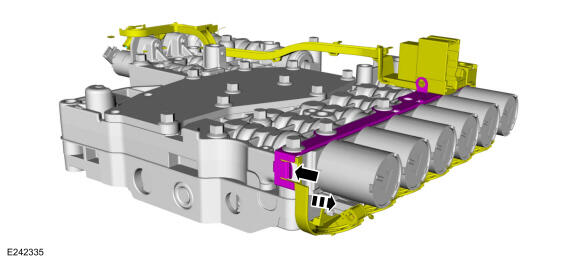

4. Release the retainer and remove the internal wiring harness assembly.

   Courtesy of FORD MOTOR COMPANY

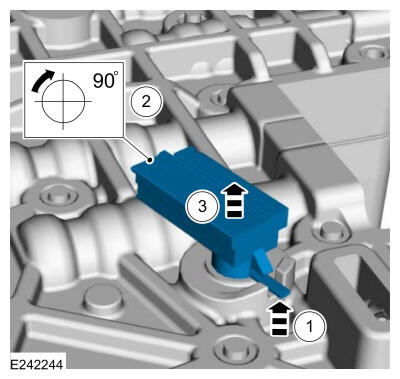

5. Remove the TFT sensor.
   1. Lift plastic tab.
   2. Rotate the TFT sensor clockwise.
   3. Remove the TFT sensor.

   Courtesy of FORD MOTOR COMPANY

6. Remove the main control assembly to transmission fluid pump seal.

   Courtesy of FORD MOTOR COMPANY

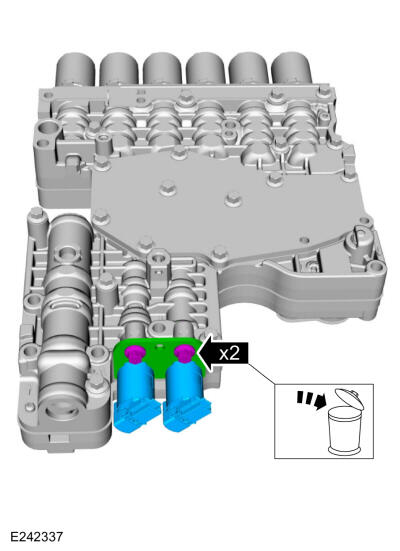

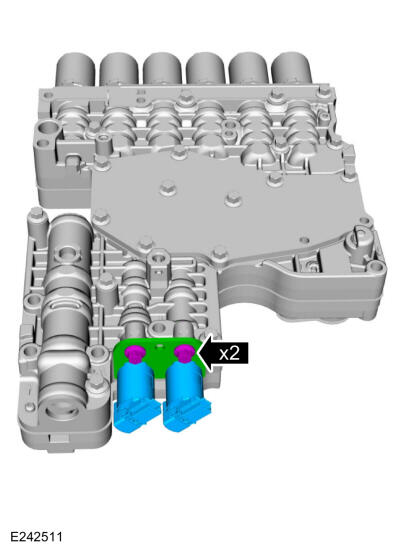

7. NOTE: The orientation of the solenoids before removal.

   Remove and discard the bolts. Remove the solenoid retaining plate, TCC solenoid and the LPC solenoid.

   Courtesy of FORD MOTOR COMPANY

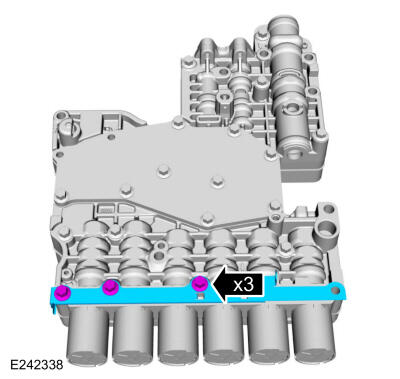

8. Remove bolts and the shift solenoid retaining plate.

   Courtesy of FORD MOTOR COMPANY

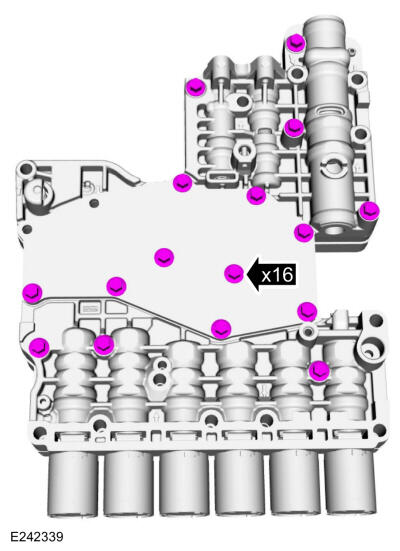

9. Remove the valve body bolts.

   Courtesy of FORD MOTOR COMPANY

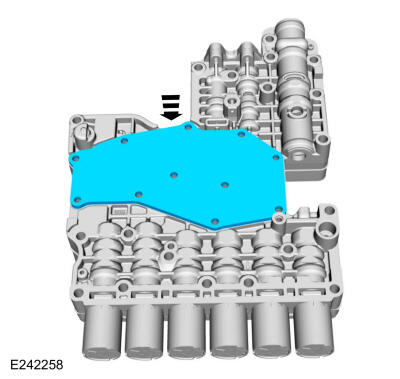

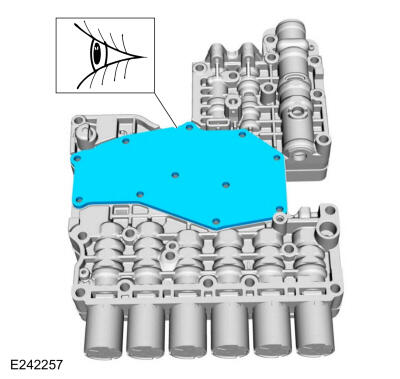

10. NOTE: The valve body channel plate can be reused if not damaged.

    Remove and inspect the valve body channel plate.

    Courtesy of FORD MOTOR COMPANY

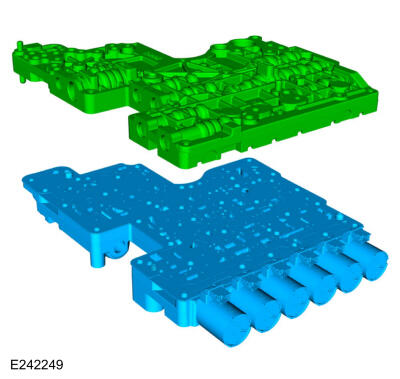

11. NOTE: Many components and surfaces in the main control valve body are precision machined. Use care when handling the upper and lower valve body or damage can occur to the machined surfaces.

    Separate the upper valve body from the lower valve body.

    Courtesy of FORD MOTOR COMPANY

    Lower Valve Body

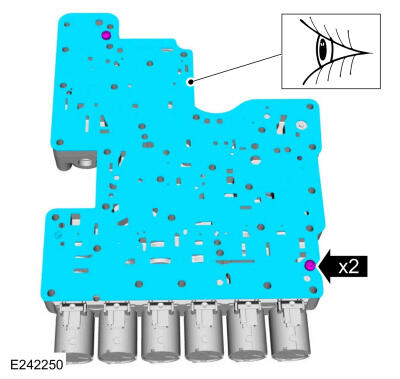

12. NOTE: The valve body separator plate can be reused if not damaged.

    Remove bolts and inspect the valve body separator plate.

    Courtesy of FORD MOTOR COMPANY

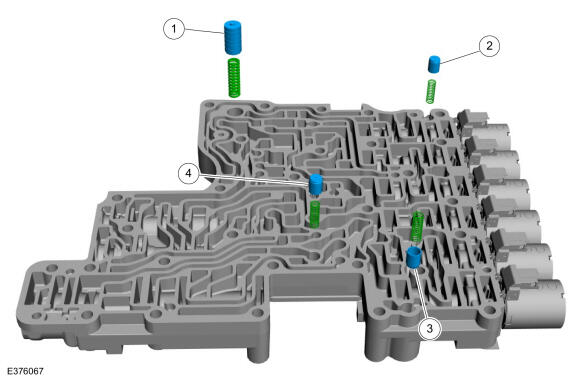

13. NOTE: The orientation of the valves and springs.

    Remove the following items:

    1. LPC damper assembly
    2. Clutch exhaust check valve
    3. If equipped, transmission fluid auxiliary pump check valve
    4. Torque converter anti-drainback valve

    Courtesy of FORD MOTOR COMPANY

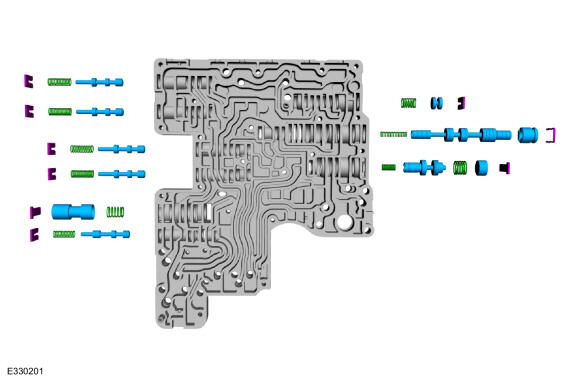

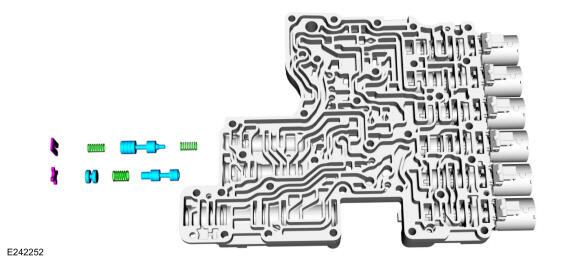

14. NOTE: Note the location of the retaining clips, caps, valves and valve springs for assembly. Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

    Remove the retaining clips, cap, valves and valve springs from each bore of the valve body assembly.

    Courtesy of FORD MOTOR COMPANY

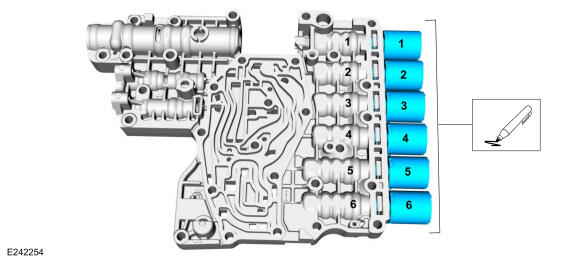

15. NOTE: Solenoids and clutch control valves may visually appear the same but they are calibrated from the factory and are not all the same. Use care not to assemble the main control assembly incorrectly. Incorrect solenoid and clutch control valve installation results in poor transmission shift quality.

    Number the solenoids 1 through 6 and number the main control solenoid ports 1 through 6 to correspond to the solenoids.

    Courtesy of FORD MOTOR COMPANY

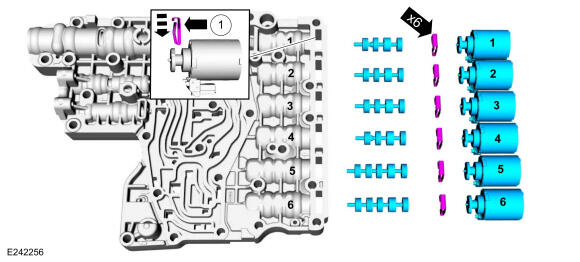

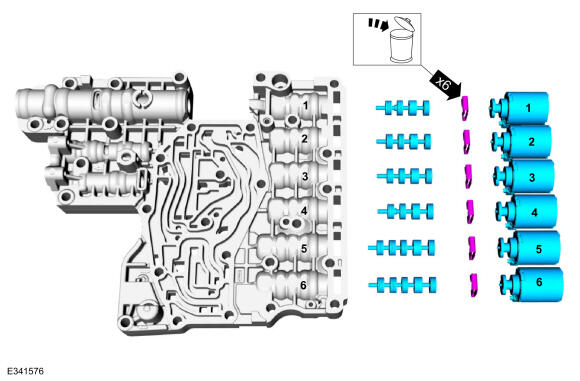

16. NOTE: Note the location of the clutch control valves and solenoids for assembly.

    Remove and discard the shift solenoid retainers. Remove the shift solenoids and clutch control valves.

    Courtesy of FORD MOTOR COMPANY

    Upper Valve Body

17. NOTE: Note the location of the retaining clips, caps, valves and valve springs for assembly. Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

    Remove the retaining clips, cap, valves and valve springs from each bore of the valve body assembly.

    Courtesy of FORD MOTOR COMPANY

    Upper and Lower Valve Body

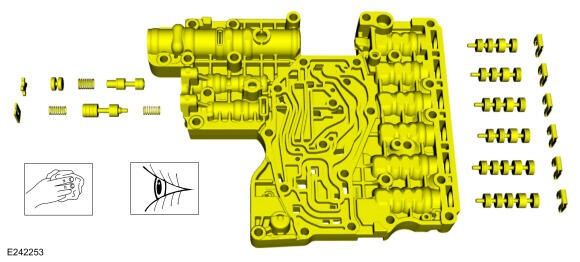

18. NOTE: Many components and surfaces in the main control valve body are precision machined. Use care when cleaning the lower valve body or damage can occur to the machined surfaces.

    Clean and inspect the lower valve body for damage. Inspect the passages and valves for damage and clean any excessive debris. Install a new component if necessary. Refer to: Main Control Valve Body

    Courtesy of FORD MOTOR COMPANY

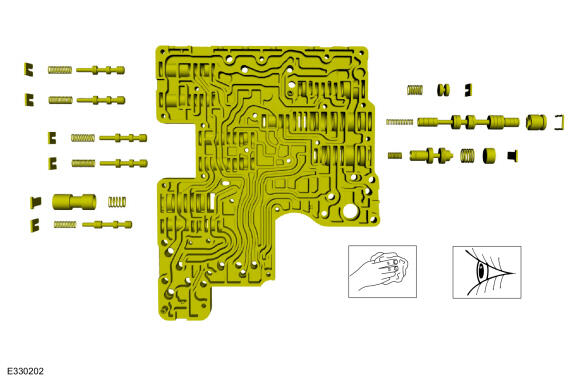

19. Clean and inspect the upper valve body for damage. Inspect the passages and valves for damage and clean any excessive debris. Install a new component if necessary. Refer to: Main Control Valve Body

    Courtesy of FORD MOTOR COMPANY

    Upper Valve Body

20. NOTE: Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

    Install the valves, valve springs, caps and the retaining clips into the correct valve body valve bore.

    Courtesy of FORD MOTOR COMPANY

    Lower Valve Body

21. NOTE: Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

    Install the valves, valve springs, cap and the retaining clips into the correct valve body valve bore.

    Courtesy of FORD MOTOR COMPANY

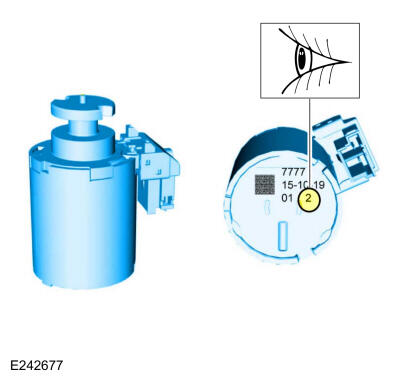

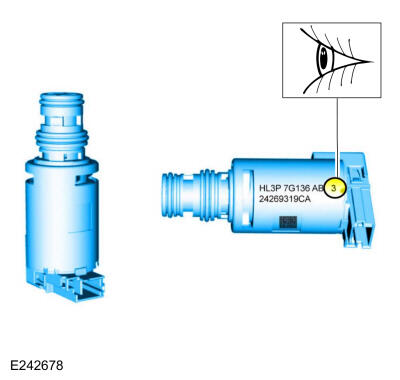

22. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

    If new solenoids are needed, identify the solenoid band number.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

    Install the clutch control valves, and the shift solenoids in the corresponding marked location. Install the new shift solenoid retainers with the flat side towards the solenoids.

    1. Retainer flat side

    Courtesy of FORD MOTOR COMPANY

24. NOTE: The orientation of the valves and springs.

    Install the following items:

    1. LPC damper assembly
    2. Clutch exhaust check valve
    3. If equipped, transmission fluid auxiliary pump check valve
    4. Torque converter anti-drainback valve

    Courtesy of FORD MOTOR COMPANY

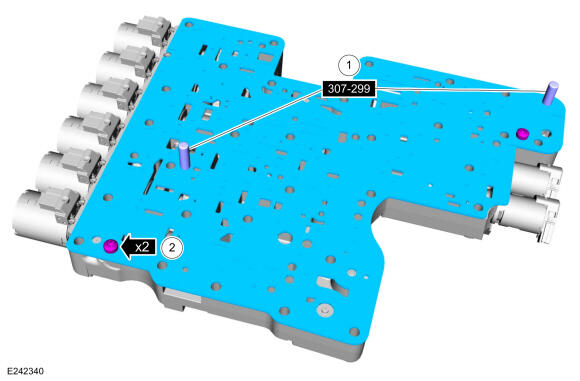

25. NOTE: The valve body separator plate can be reused if not damaged.

    Using the special tools align the valve body separator plate onto the lower valve body and install the bolts.Use Special Service Tool: 307-299 Alignment Pins, Valve Body.

    Torque: 8 Nm

    Courtesy of FORD MOTOR COMPANY

    Upper and Lower Valve Body

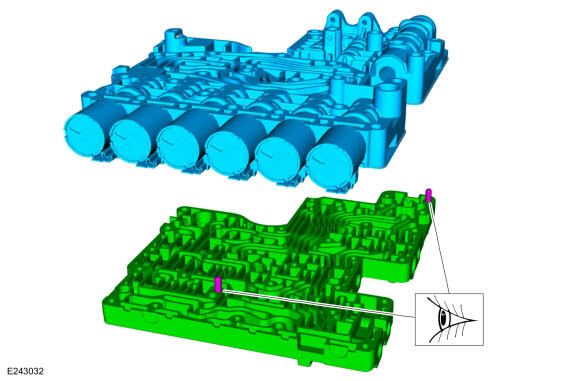

26. Align the guide pins on the upper valve body with the alignment holes in the lower valve body.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: The valve body channel plate can be reused if not damaged.

    Install the valve body channel plate.

    Courtesy of FORD MOTOR COMPANY

28. Loosely install the valve body bolts.

    Courtesy of FORD MOTOR COMPANY

29. Install the shift solenoid retaining plate and loosely install the bolts.

    Courtesy of FORD MOTOR COMPANY

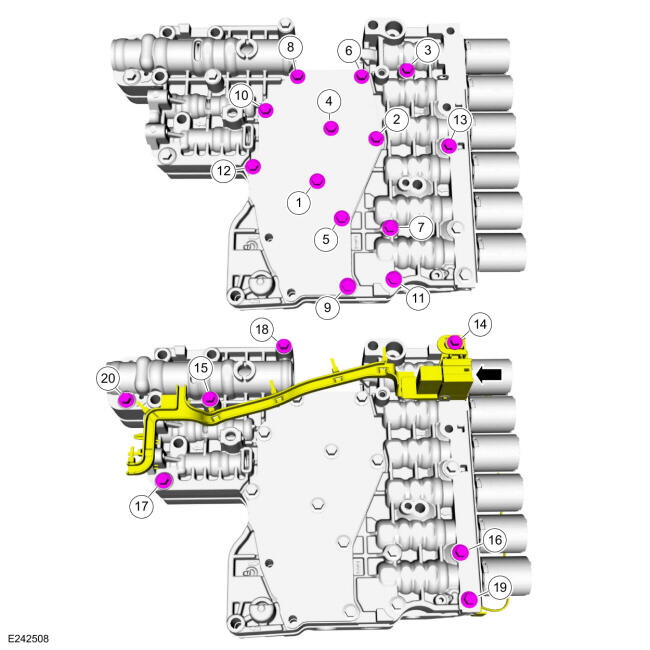

30. Tighten the bolts in the sequence shown.

    Torque: 12 Nm

    Courtesy of FORD MOTOR COMPANY

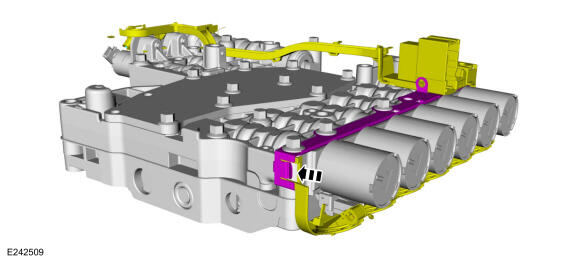

31. Push the internal wiring harness into the retainer.

    Courtesy of FORD MOTOR COMPANY

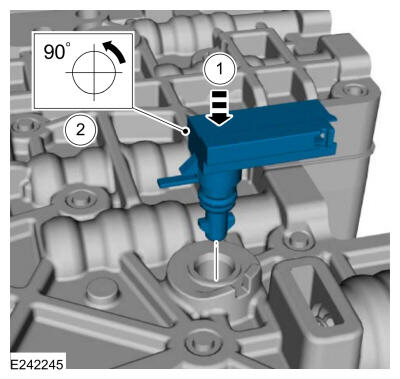

32. Install the TFT sensor.
    1. Position the TFT sensor in the main control valve body.
    2. Rotate the TFT sensor counter clockwise until the plastic tab locks into place.

    Courtesy of FORD MOTOR COMPANY

33. Connect the internal wiring harness electrical connectors.
    • Slide the plastic lock to the locked position.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh shifts or damage to the transmission can occur.

    If new solenoids are needed, identify which type (normally high/normally low) of solenoid it is and the solenoid band number.

    Courtesy of FORD MOTOR COMPANY

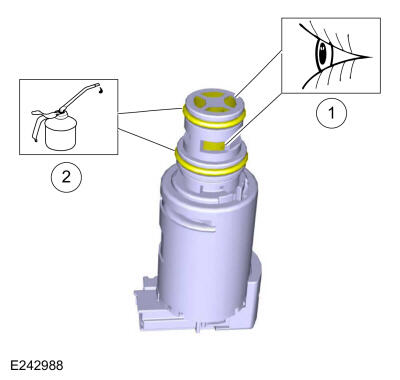

35. 1. Inspect the solenoid screens for debris that may restrict fluid flow
    2. Lubricate the solenoid O-ring seals. Refer to: SPECIFICATIONS .

    Courtesy of FORD MOTOR COMPANY

36. Install the TCC solenoid, LPC solenoid, solenoid retaining plate and the new bolts.

    Torque: 9 Nm

    Courtesy of FORD MOTOR COMPANY

37. Connect the internal wiring harness.
    1. Slide the plastic lock to the locked position.
    2. Connect the internal wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

38. Install the main control assembly to transmission fluid pump seal.

Courtesy of FORD MOTOR COMPANY
