Air Pressure Test
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

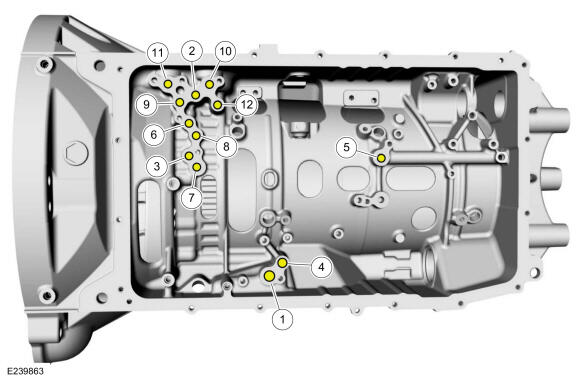

10R60/10R80/10R100 Air Ports
| Item | Description |
|---|---|
| 1 | A clutch |
| 2 | B clutch |
| 3 | C clutch |
| 4 | D clutch |
| 5 | E clutch |
| 6 | F clutch |
| 7 | TCC apply |
| 8 | TCC release |
| 9 | Lube |
| 10 | To cooler |
| 11 | From cooler |
| 12 | Line pressure tap |
- Using a high volume rubber tipped blow gun, apply air pressure to the suspect clutch port for 2-3 seconds.
- While applying air pressure, a dull thud on clutches A and B would indicate the clutch piston is applied.
- While applying air pressure, a hissing noise may indicate a leak in the hydraulic passages.
- While applying air pressure, cross leakage in the hydraulic circuit between the C, D, E and F rotating clutch seals is expected.
