Engine Ignition: Overview

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

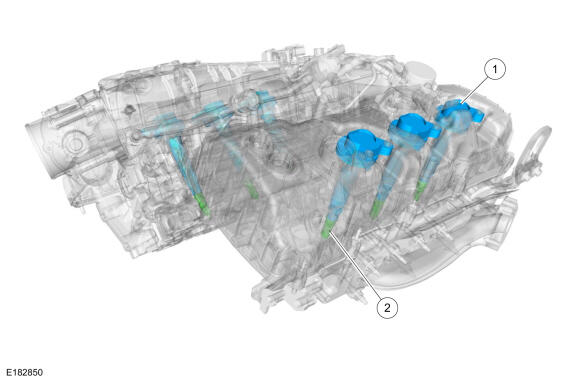

Engine Ignition - Component Location

3.5L EcoBoost

GFD839059Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
