Throttle Body: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure that the mating faces are clean and free of foreign material.

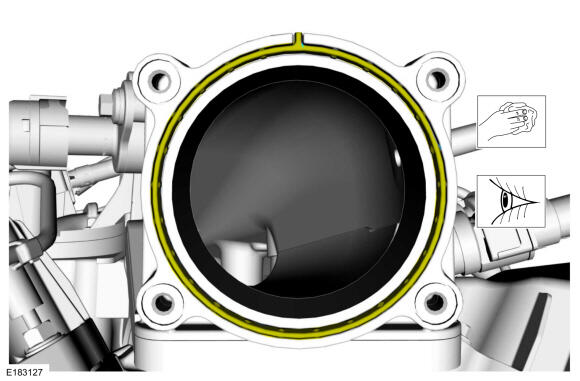

  1. Inspect the Throttle Body (TB) gasket, clean and replace the Throttle Body (TB) gasket as needed.
    GFD838979Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. If a new throttle body was installed, road test the vehicle.
