Fuel Pump Driver Module (FPDM): Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Chassis Cab

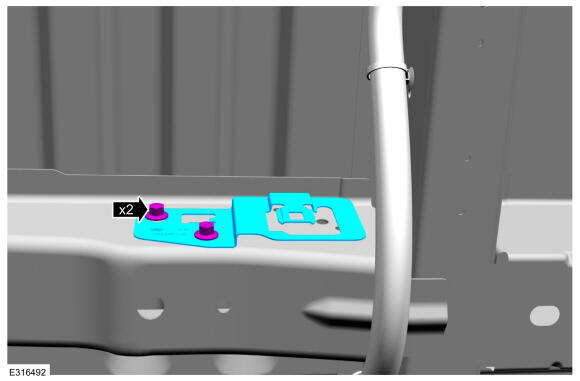

- Only If removed, install the fuel pump driver module bracket, then install and tighten the bolts.
Torque : 25 Nm

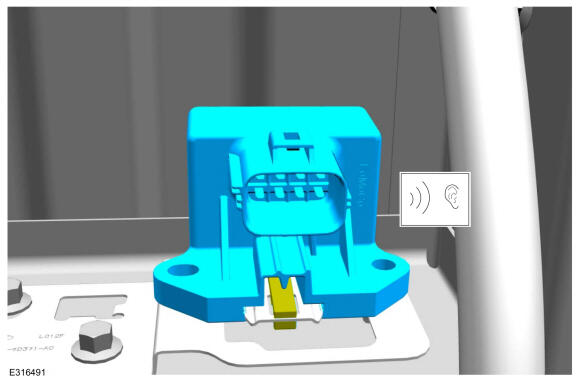

- Install the fuel pump driver module to the bracket until it clicks and locks into position.

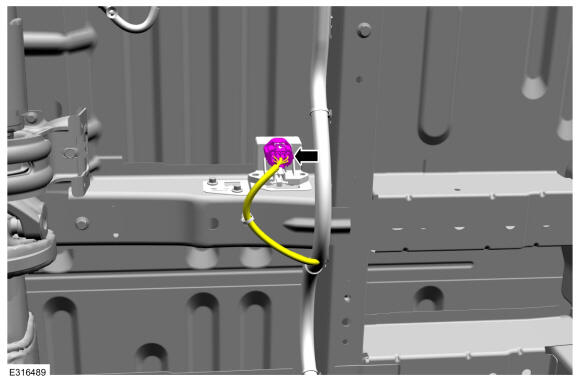

- Connect the fuel pump driver module electrical connector.
Full Body

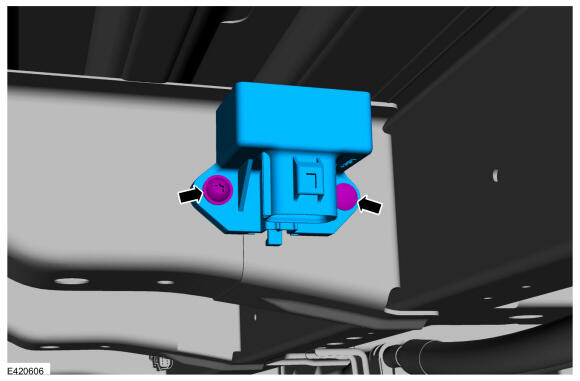

- Install the fuel pump driver module and the retainer, then tighten the bolt.
Torque : 25 Nm

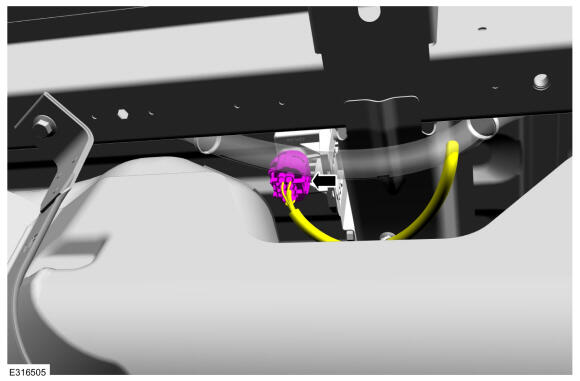

- Connect the fuel pump driver module electrical connector.
All vehicles
- Install the fuel tank. Refer to: Fuel Tank
