Starter Motor Drive Gear and Flywheel Ring Gear Inspection
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Inspection
- Refer to: Starting System .

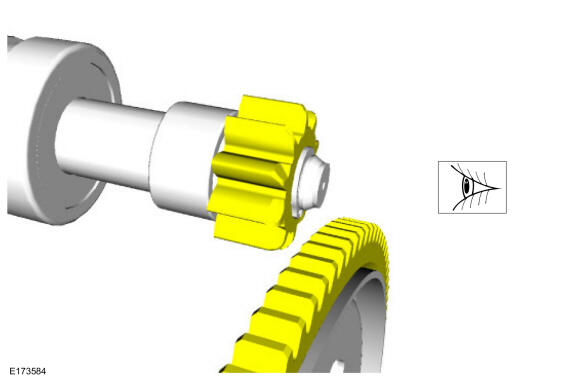

- Check the wear patterns on the starter drive gear and the flywheel or flexplate ring gear. If the wear pattern is normal, then install the starter motor. Refer to: Starter Motor
.
- If the starter motor drive gear and the flywheel or flexplate ring gear are not fully engaging and the starter motor drive gear is scored or damaged, then install a new starter motor. Refer to: Starter Motor .
- If the teeth on the flywheel or flexplate ring gear are scored or damaged, then install a new flywheel or flexplate. Refer to: Flexplate .
