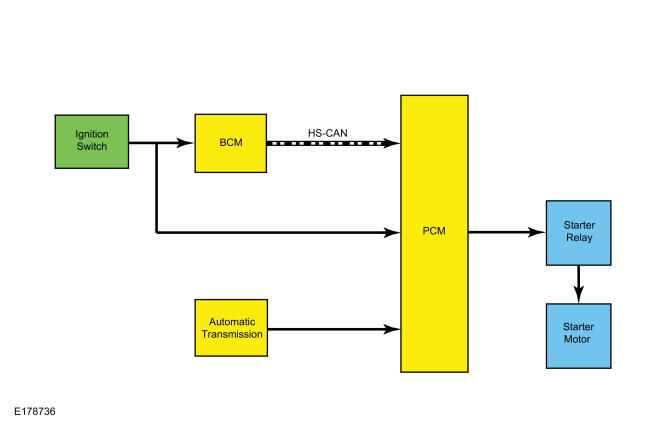

System Diagram

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
GFD839048Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM
2 Starter Relay
3 Starter Motor
4 BCM
5 Ignition Switch
6 Automatic Transmission
