Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Loosen the pressure relief cap.

    GFD838826Courtesy of FORD MOTOR COMPANY
  2. Remove the retainers and the underbodyshield.

    Torque: 5 Nm

    GFD838827Courtesy of FORD MOTOR COMPANY
  3. Disconnect the coolant control valve electrical connector.

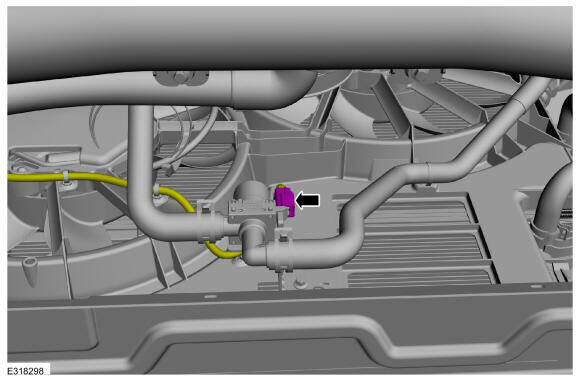

    GFD838873Courtesy of FORD MOTOR COMPANY
  4. Clamp off the coolant control valve hoses. Use the General Equipment: Hose Clamp(s)

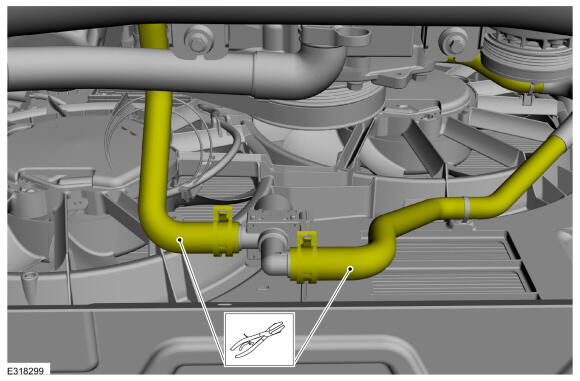

    GFD838874Courtesy of FORD MOTOR COMPANY
  5. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

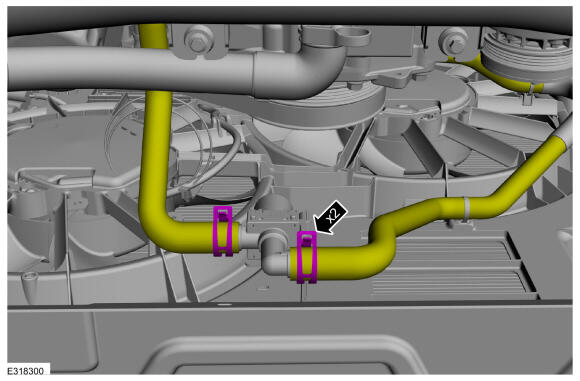

    GFD838875Courtesy of FORD MOTOR COMPANY
  6. Remove the bolt and the transmission fluid heater coolant control valve.

    Torque: 10 Nm

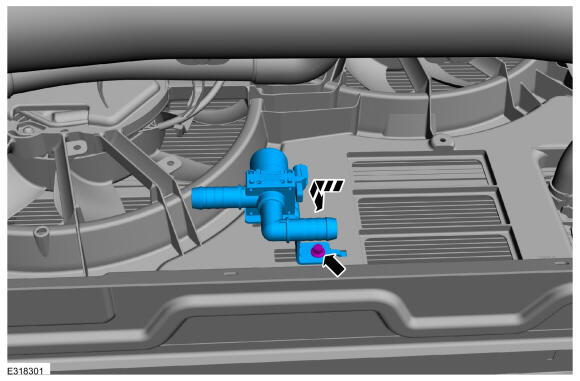

GFD838876Courtesy of FORD MOTOR COMPANY
