Removal And Installation: Radiator: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .
-

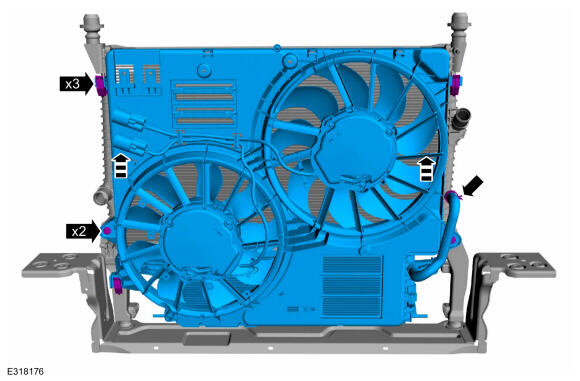

- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolts and release the clips.
Torque: 10 Nm
- Remove the cooling fan motor and shroud and auxiliary radiator as assembly.

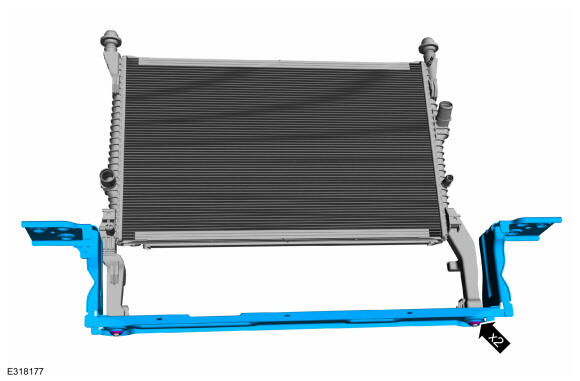

- Remove the lower radiator support.

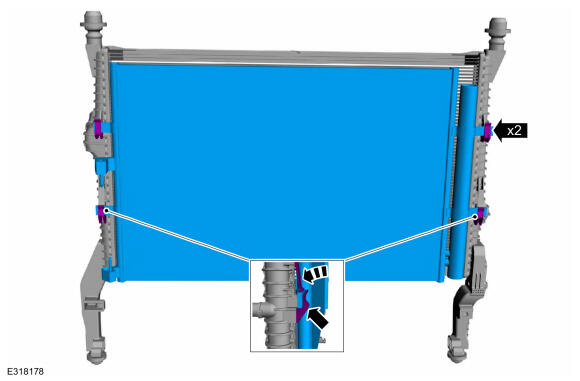

- Release the clips and remove the A/C condenser.

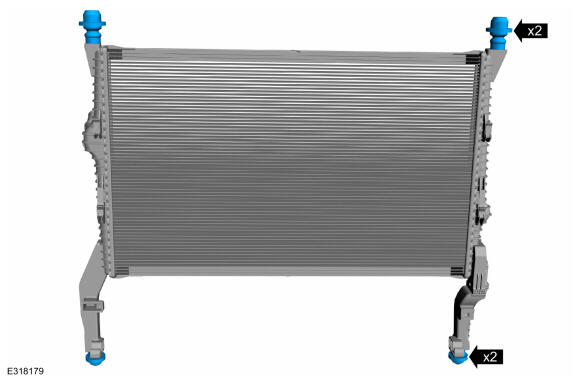

- Remove the upper and lower radiator insulators.
