Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview .
Detach the coolant hose and the vapor tube retainers.

Courtesy of FORD MOTOR COMPANY
- Disconnect the cooling fan motor and shroud electrical connectors.
- Release the tabs and position aside the exhaust emission control module.
Courtesy of FORD MOTOR COMPANY

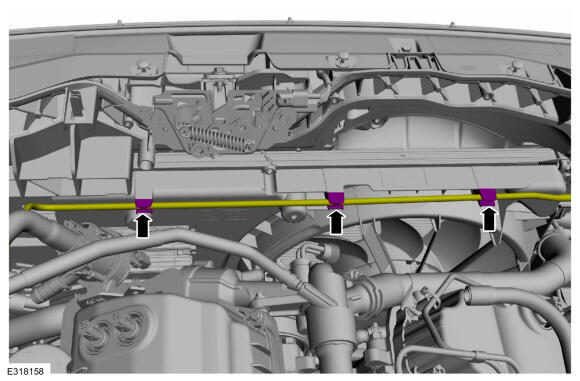

Detach the coolant tube from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY

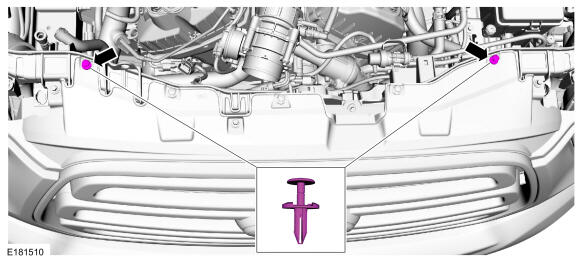

Remove the push pins.

Courtesy of FORD MOTOR COMPANY

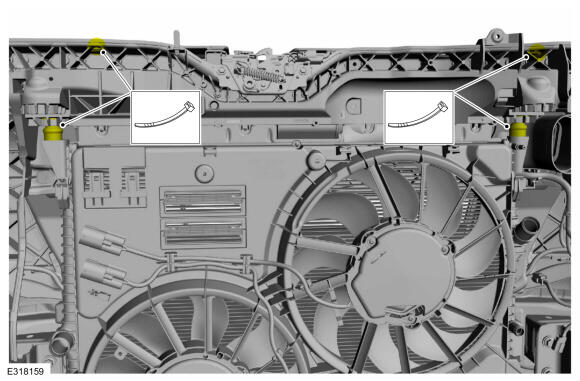

NOTE: The cable ties must be installed to allow the cooling module to drop 2-3 inches.

Using a series of cable ties support both sides of the cooling module utilizing the push pin holes and the upper radiator mounts. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbodyshield.
Torque: 5 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

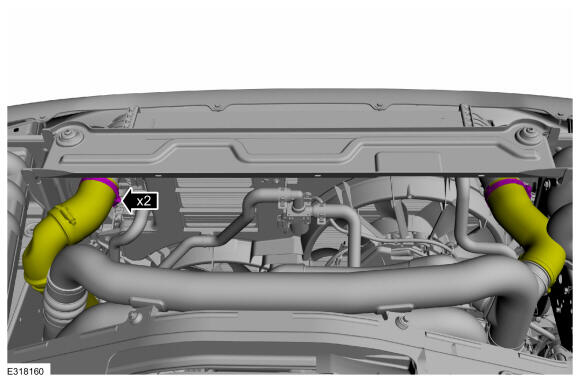

Loosen the clamps and disconnect the CAC hoses.

Torque: 5 Nm

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the lower load path bars. Discard the retainers.
Torque: 1: 62 Nm 2: 25 Nm

Courtesy of FORD MOTOR COMPANY
- Disconnect the wiring harness electrical connector and detach the retainers.
- Remove the bolts.
  Torque: 8 Nm
- Loosen the clamps and remove the CAC tubes.
  Torque: 5 Nm
Courtesy of FORD MOTOR COMPANY
- Detach the wiring harness retainers.
- Detach the coolant hose retainer.
- Remove the bolt and position the transmission fluid heater coolant control valve.
  Torque: 10 Nm
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the lower radiator support.
Torque: 25 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: All components are not shown for clarity.

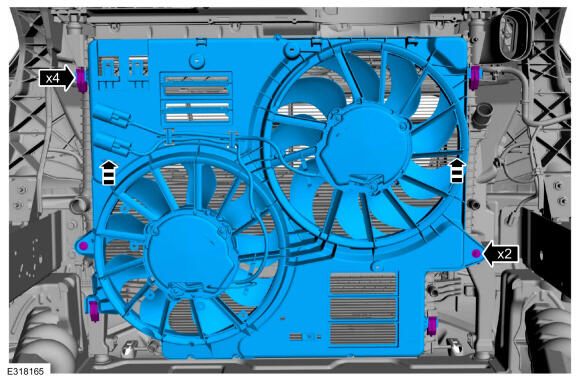

Remove the bolts, release the clips and the remove the cooling fan motor and shroud.

Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
