Coolant Inlet Pipe: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. Refer to: INTAKE MANIFOLD .
  2. Remove the thermostat housing. Refer to: Thermostat Housing  .

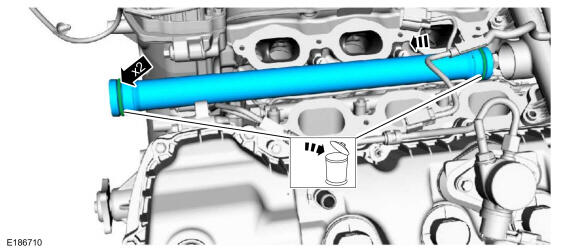

    • Remove the coolant pipe.

    • Discard the O-ring seals.

GFD838834Courtesy of FORD MOTOR COMPANY
