Coolant Inlet Pipe: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

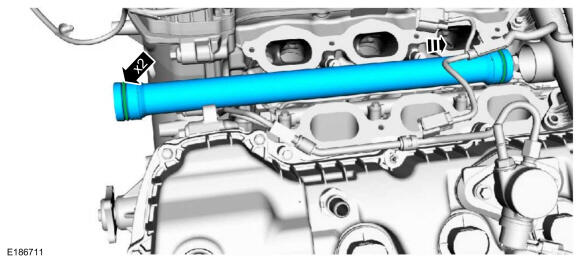

    • Install new O-ring seals and lubricate them with clean engine coolant. Refer to: SPECIFICATIONS  .

    • Install the coolant pipe.

    GFD838835Courtesy of FORD MOTOR COMPANY
  2. Install the thermostat housing. Refer to: Thermostat Housing  .
  3. Install the intake manifold. Refer to: INTAKE MANIFOLD .
