Coolant Crossover Manifold: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding  .
  2. Remove the intake manifold. Refer to: INTAKE MANIFOLD .

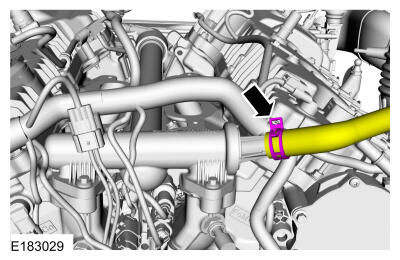

  3. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD838833Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the coolant outlet.
    GFD837994Courtesy of FORD MOTOR COMPANY
  5. Remove and discard the gaskets.
GFD837995Courtesy of FORD MOTOR COMPANY
