Turbocharger - Component Location: Notes

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

3. 5L EcoBoost

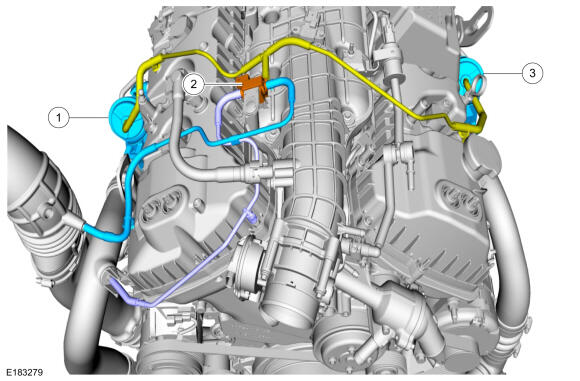

GFD838914Courtesy of FORD MOTOR COMPANY
Item Description
1 Right turbocharger
2 Wastegate control valve solenoid
3 Left turbocharger
