Transmission Fluid Heater Coolant Control Valve: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. Loosen the pressure relief cap.

    GFD838826Courtesy of FORD MOTOR COMPANY
  2. Remove the retainers and the underbodyshield.

    Torque: 5 Nm

    GFD838827Courtesy of FORD MOTOR COMPANY

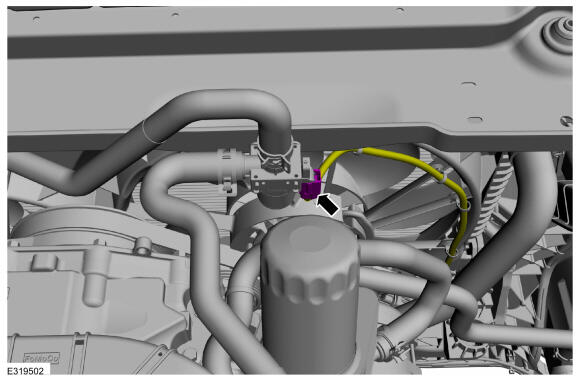

  3. Disconnect the coolant control valve electrical connector.
    GFD838910Courtesy of FORD MOTOR COMPANY

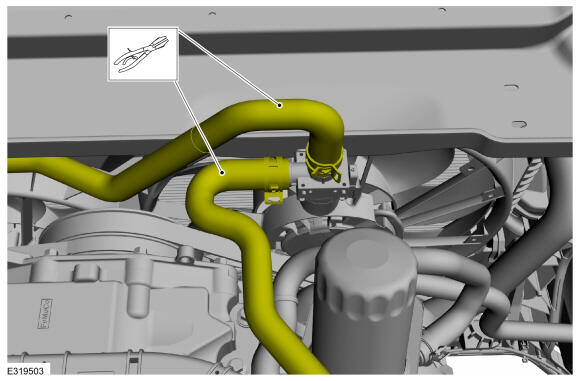

  4. Clamp off the coolant control valve hoses.Use the General Equipment: Hose Clamp(s)
    GFD838911Courtesy of FORD MOTOR COMPANY

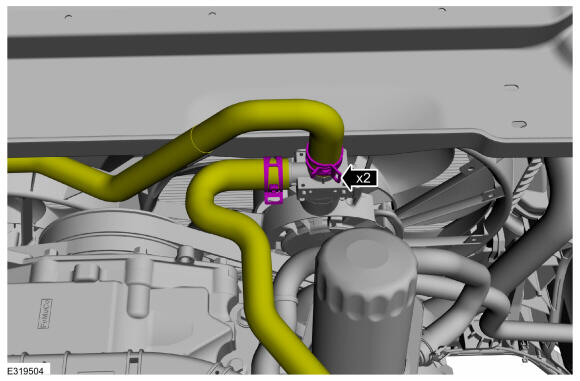

  5. Release the clamps and disconnect the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
    GFD838912Courtesy of FORD MOTOR COMPANY

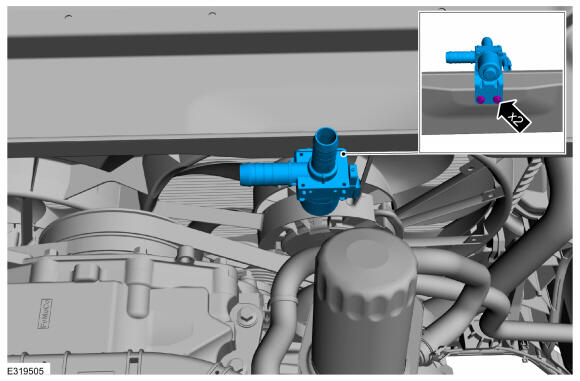

  6. Remove the bolts and the transmission fluid heater coolant control valve.

    Torque: 10 Nm

GFD838913Courtesy of FORD MOTOR COMPANY
