Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module. Refer to: Cooling Module .

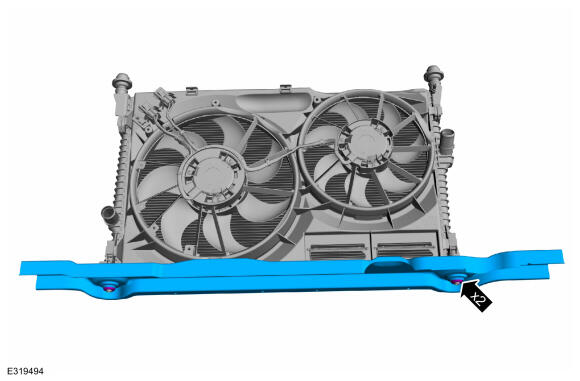

  2. Remove the lower radiator support.
    GFD838902Courtesy of FORD MOTOR COMPANY

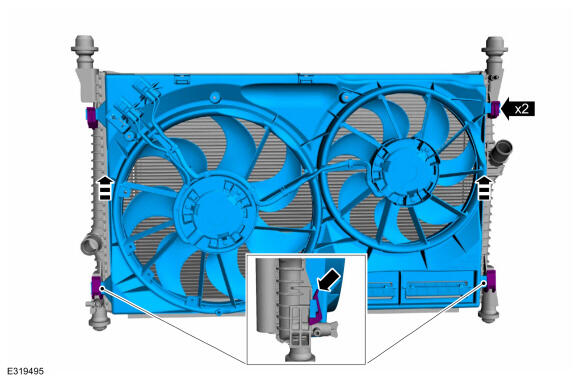

  3. Release the clips and remove the cooling fan motor and shroud.
    GFD838903Courtesy of FORD MOTOR COMPANY

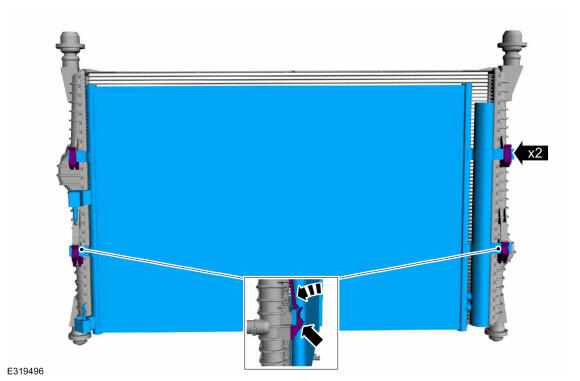

  4. Release the clips and remove the A/C condenser.
    GFD838904Courtesy of FORD MOTOR COMPANY

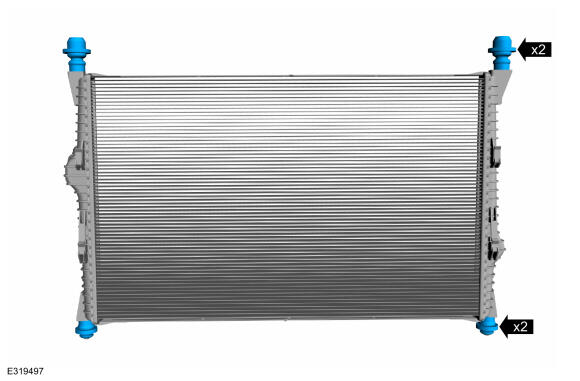

  5. Remove the upper and lower radiator insulators.
GFD838905Courtesy of FORD MOTOR COMPANY
