Cooling Module: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
- Recover the refrigerant. Refer to: AIR CONDITIONING (A C) SYSTEM RECOVERY, EVACUATION AND CHARGING
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Position the lower radiator support and install the bolts finger-tight.

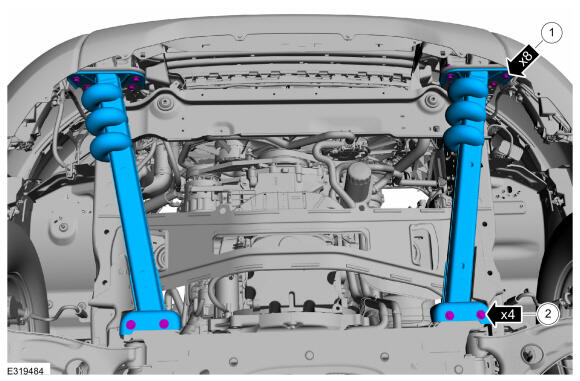

- Remove the retainers and the lower load path bars.
Torque: 1: 62 Nm 2: 25 Nm

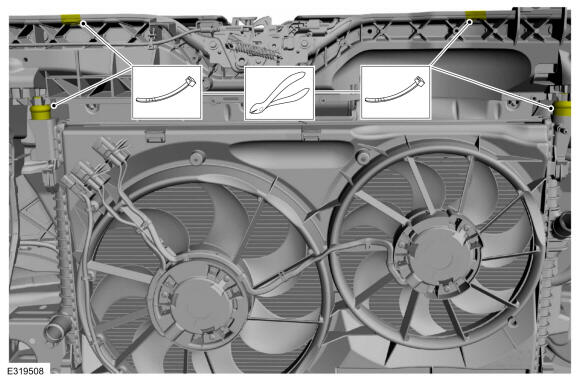

- Remove the cable ties from the cooling module.
-
NOTE: Make sure that all openings are sealed.

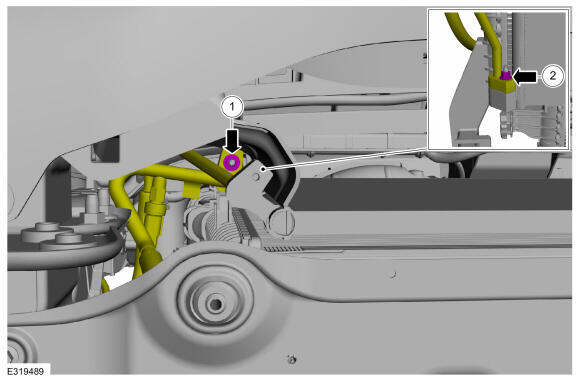

Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque: 1: 17 Nm 2: 9 Nm

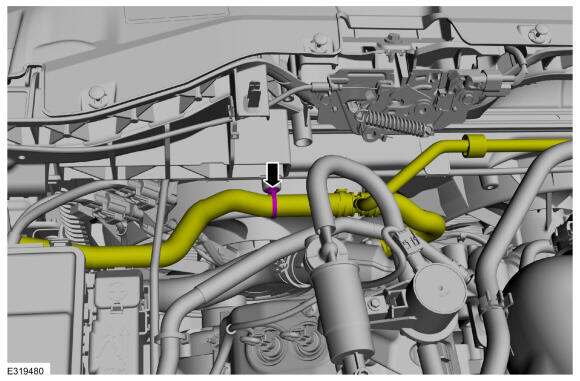

- Detach the coolant hose retainer.

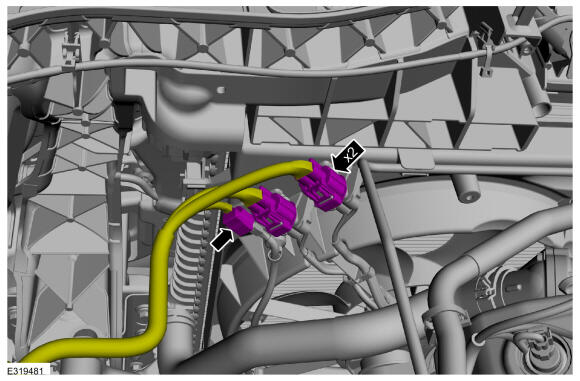

- Disconnect the cooling fan motor and shroud electrical connectors.
-
- Detach the coolant tube from the cooling fan shroud.
- Follow the directions to release quick release coupling type 16.Disconnect the coolant tube. Refer to: QUICK RELEASE COUPLING

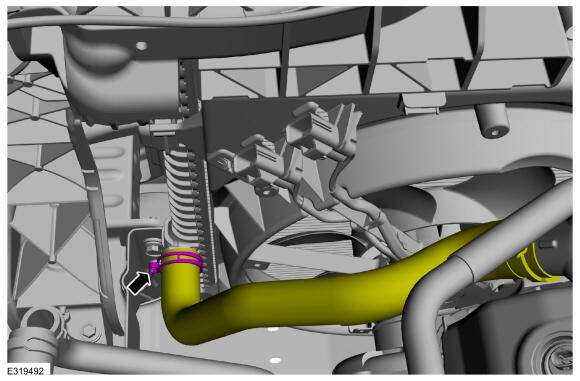

- Release the clamp and disconnect the lower radiator hose.Use the General Equipment: Hose Clamp Remover/Installer

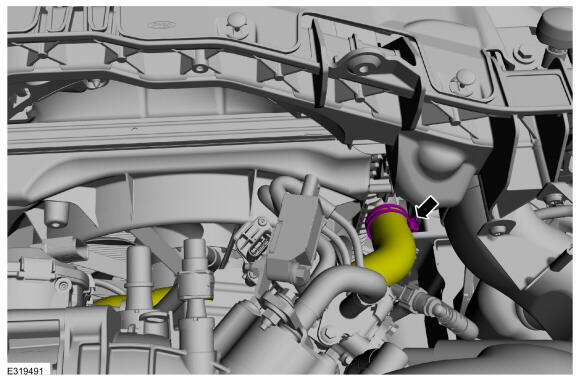

- Release the clamp and disconnect the upper radiator hose.Use the General Equipment: Hose Clamp Remover/Installer

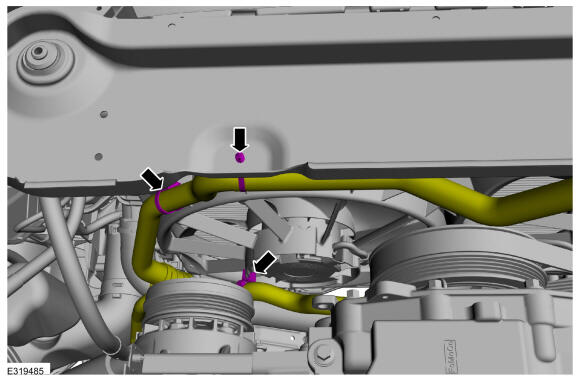

- Detach coolant hose retainers.
-

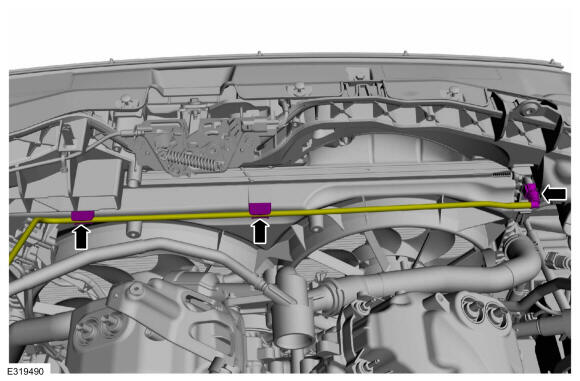

- Detach the wiring harness retainers.

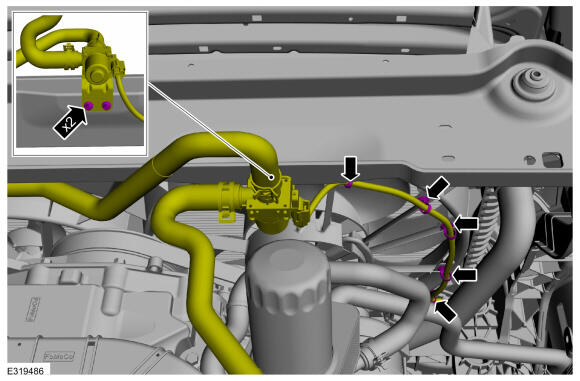

- Remove the bolts and position the transmission fluid heater coolant control valve.
Torque: 10 Nm
-

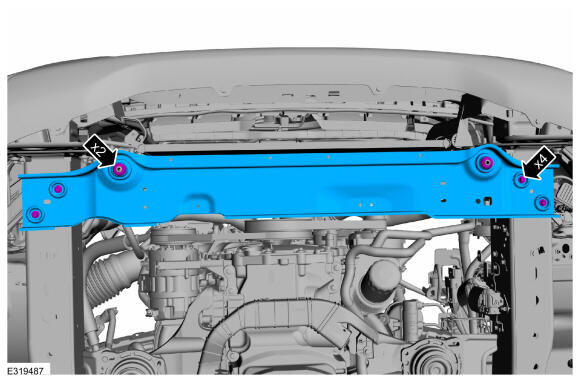

- Remove the bolts.
Torque: 25 Nm

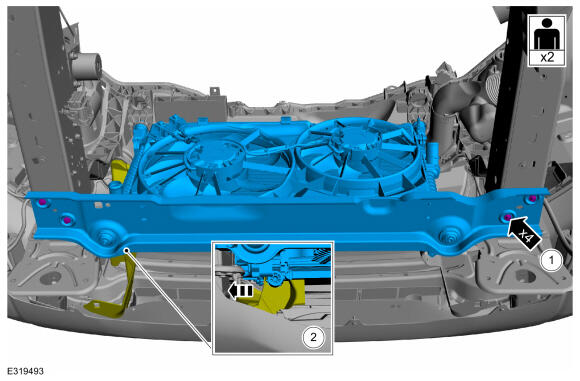

- Position the air deflector and remove the cooling module.
- Remove the bolts.
