Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
- Detach the coolant hose retainer.
- Disconnect the cooling fan motor and shroud electrical connectors.

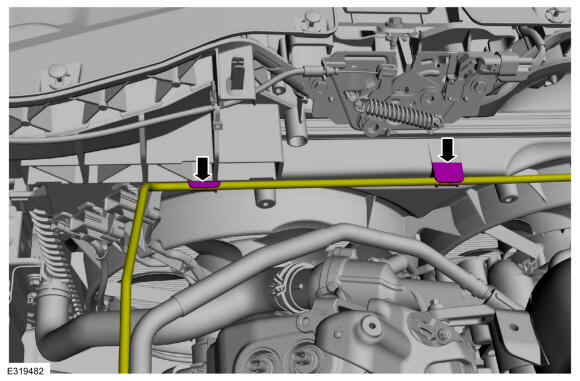

- Detach the coolant tube from the cooling fan shroud.
- Remove the push pins.
-
NOTE: The cable ties must be installed to allow the cooling module to drop 2-3 inches.

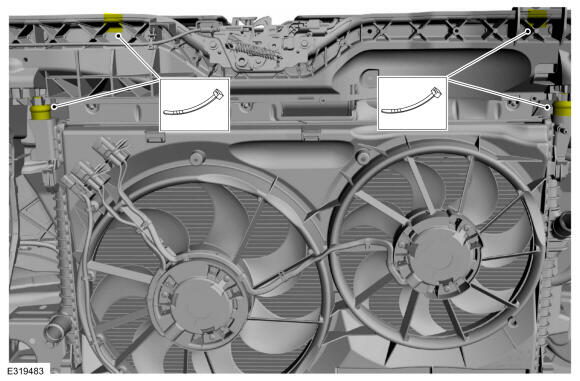

Using a series of cable ties support both sides of the cooling module utilizing the push pin holes and the upper radiator mounts.Use the General Equipment: Cable Ties
- Remove the retainers and the underbodyshield.
Torque: 5 Nm
- Remove the retainers and the lower load path bars.
Torque: 1: 62 Nm 2: 25 Nm
- Detach coolant hose retainers.
-
- Detach the wiring harness retainers.
- Remove the bolts and position the transmission fluid heater coolant control valve.
Torque: 10 Nm
- Remove the bolts and the lower radiator support.
Torque: 25 Nm
-
NOTE: All components are not shown for clarity.

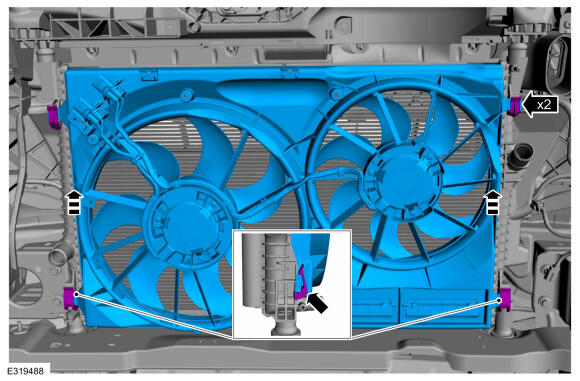

Release the clips and the remove the cooling fan motor and shroud.
