Coolant Pump: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.
- Remove the thermostat housing. Refer to: Thermostat Housing .
- Remove the bolts and the coolant pump pulley.
- Follow the directions to release the quick release coupling type 25.Disconnect the coolant tube. Refer to: QUICK RELEASE COUPLING

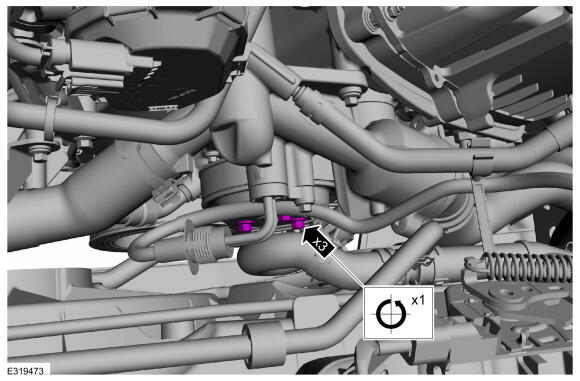

- Remove the bolts and the coolant pump.

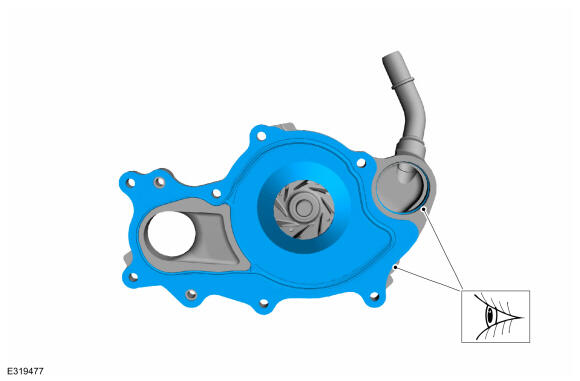

- Inspect the O-ring seal and gasket and replace it if necessary.
