Coolant Pump: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

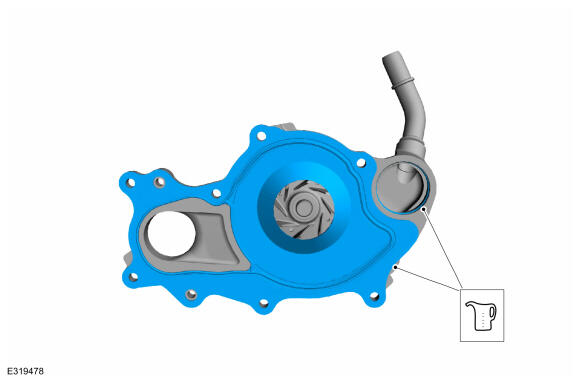

  1. NOTE: This step is only necessary when installing a new component.

    Install a new O-ring seal and gasket and lubricate it with clean engine coolant. Refer to: Specifications .

    GFD838841Courtesy of FORD MOTOR COMPANY

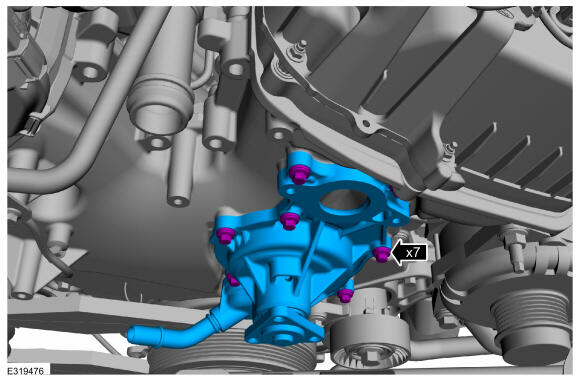

  2. Install the coolant pump and the bolts.

    Torque: Stage 1: 10 Nm Stage 2: 45deg.

    GFD838839Courtesy of FORD MOTOR COMPANY

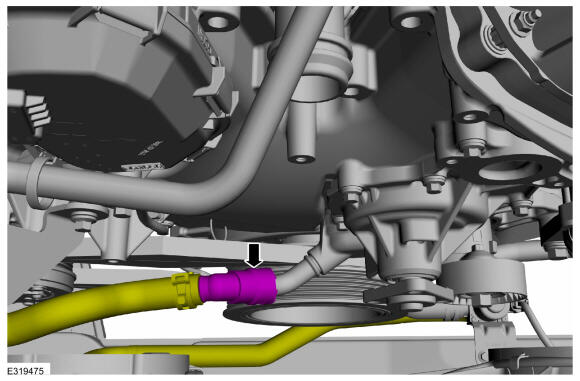

  3. Follow the directions to connect the quick release coupling type 25.Connect the coolant tube. Refer to: QUICK RELEASE COUPLING
    GFD838838Courtesy of FORD MOTOR COMPANY

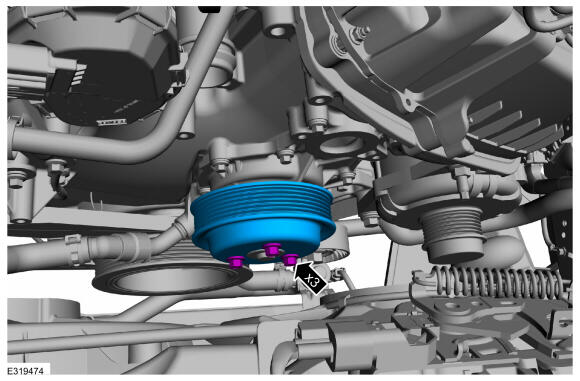

  4. Position the coolant pump pulley and install the bolts finger-tight.
    GFD838837Courtesy of FORD MOTOR COMPANY
  5. Install the thermostat housing. Refer to: Thermostat Housing .
  6. Remove the plastic from the A/C compressor belt.
  7. Install the accessory drive belt. Refer to: Accessory Drive Belt .

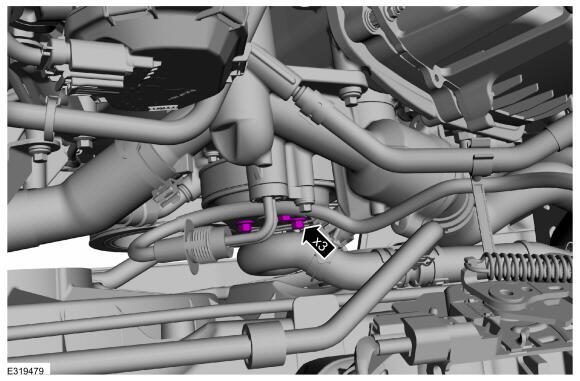

  8. Tighten the coolant pump pulley bolts.

    Torque: 24 Nm

    GFD838842Courtesy of FORD MOTOR COMPANY
  9. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  10. Road test the vehicle.
