Engine Cooling: Overview
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Engine Cooling - Component Location
NOTE:
Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38deg. C (100deg. F). Red arrows indicate a temperature over 90deg. C (194deg. F), Orange arrows indicate a temperature of approximately 90deg. C (194deg. F), Blue arrows indicate a temperature below 90deg. C (194deg. F).

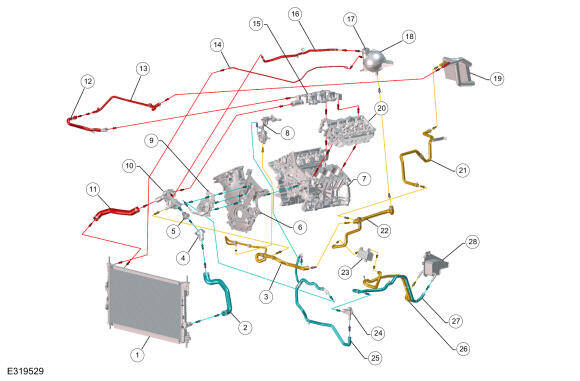

Without rear heat
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Heater outlet hose |
| 4 | Coolant outlet connector |
| 5 | Thermostat |
| 6 | Engine front cover |
| 7 | Cylinder block |
| 8 | EGR valve |
| 9 | Coolant pump |
| 10 | Thermostat housing |
| 11 | Upper radiator hose |
| 12 | Heater inlet hose |
| 13 | Heater hose assembly |
| 14 | Radiator overflow hose |
| 15 | Lower intake manifold |
| 16 | Air aspirator hose |
| 17 | Pressure relief cap |
| 18 | Degas bottle |
| 19 | Heater core |
| 20 | Cylinder head LH |
| 21 | Heater outlet hose |
| 22 | Degas bottle hose assembly |
| 23 | Engine oil cooler |
| 24 | Transmission fluid heater coolant control valve |
| 25 | Transmission fluid heater coolant control valve inlet hose |
| 26 | Transmission oil cooler outlet hose |
| 27 | Transmission oil cooler inlet hose |
| 28 | Transmission oil cooler |

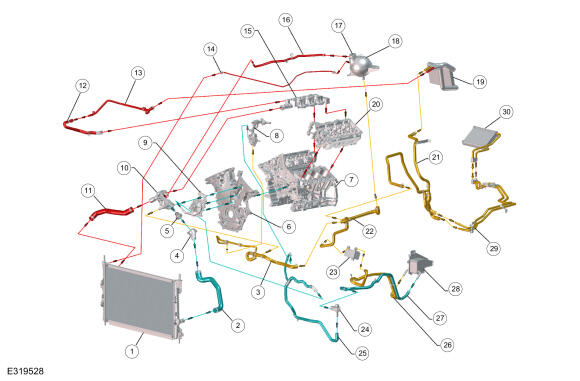

With rear heat
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Heater outlet hose |
| 4 | Coolant outlet connector |
| 5 | Thermostat |
| 6 | Engine front cover |
| 7 | Cylinder block |
| 8 | EGR valve |
| 9 | Coolant pump |
| 10 | Thermostat housing |
| 11 | Upper radiator hose |
| 12 | Heater inlet hose |
| 13 | Heater hose assembly |
| 14 | Radiator overflow hose |
| 15 | Lower intake manifold |
| 16 | Air aspirator hose |
| 17 | Pressure relief cap |
| 18 | Degas bottle |
| 19 | Heater core |
| 20 | Cylinder head LH |
| 21 | Heater outlet hose |
| 22 | Degas bottle hose assembly |
| 23 | Engine oil cooler |
| 24 | Transmission fluid heater coolant control valve |
| 25 | Transmission fluid heater coolant control valve inlet hose |
| 26 | Transmission oil cooler outlet hose |
| 27 | Transmission oil cooler inlet hose |
| 28 | Transmission oil cooler |
| 29 | Auxiliary heater core hose assembly |
| 30 | Auxiliary heater core |
