Timing Chain Tensioner: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. Remove the engine front cover. Refer to: Engine Front Cover .
  2. NOTE: Rotate the crankshaft in a clockwise direction only.

    Rotate the crankshaft clockwise and align the timing marks on the intake VCT units as shown.

    GFD837801Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the LH oil tube.
    GFD837802Courtesy of FORD MOTOR COMPANY
  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD837803Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the RH oil tube.
    GFD837804Courtesy of FORD MOTOR COMPANY
  6. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD837805Courtesy of FORD MOTOR COMPANY

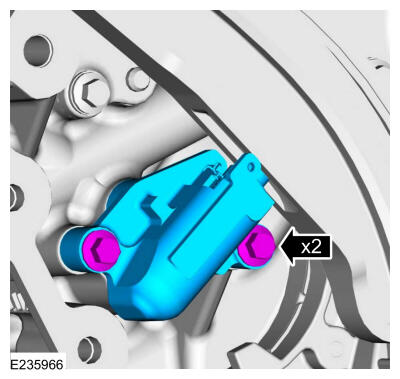

  7. Remove the bolts and the timing chain tensioner.
GFD837843Courtesy of FORD MOTOR COMPANY
