Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING

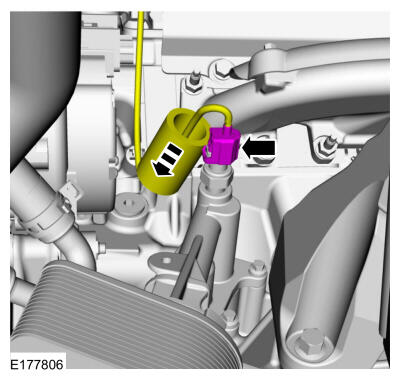

  2. Slide the insulator off and disconnect oil pressure switch electrical connector.
    GFD837796Courtesy of FORD MOTOR COMPANY

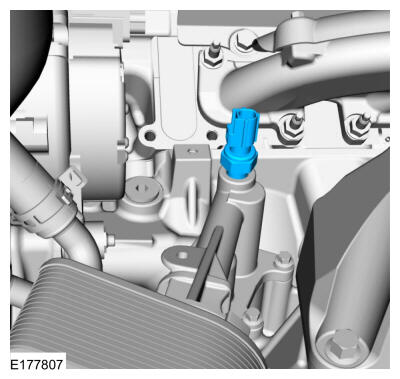

  3. Remove the oil pressure switch.
GFD837797Courtesy of FORD MOTOR COMPANY
