Oil Pressure Switch: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:

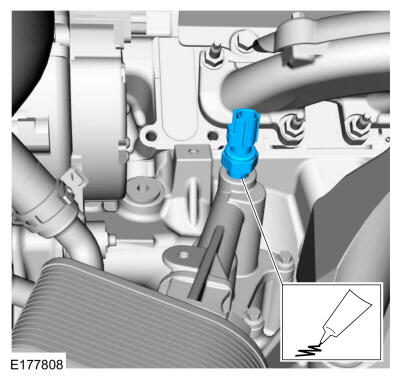

If the oil pressure switch is to be reused, apply thread sealant.
Install the oil pressure switch.
Material: thread sealant (WSK-M2G350-A2)
Torque: 18 Nm
 Courtesy of FORD MOTOR COMPANY
|

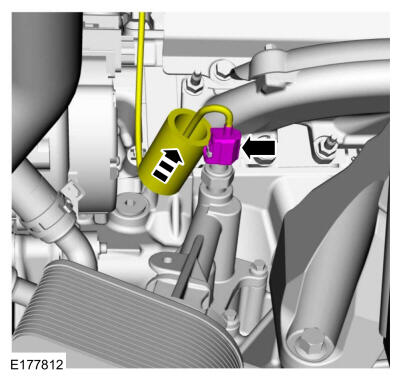

- Connect the oil pressure switch electrical connector and slide the insulator on.
 Courtesy of FORD MOTOR COMPANY
|
