Oil Cooler: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

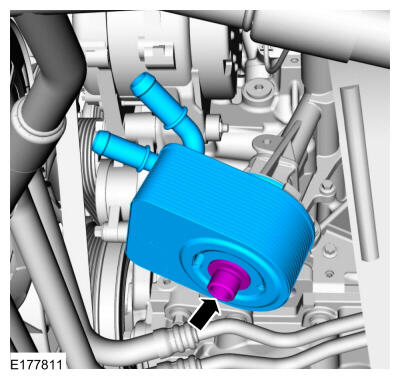

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

Install the oil cooler and the retainer.

Torque: 58 Nm

Courtesy of FORD MOTOR COMPANY

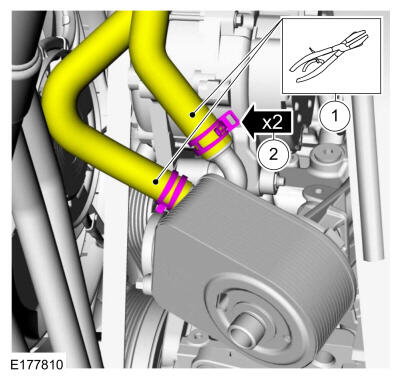

1. Using the hose clamp installer, install the coolant hoses.Use the General Equipment: Hose Clamp Remover/Installer
2. Remove the hose locking pliers.
Courtesy of FORD MOTOR COMPANY

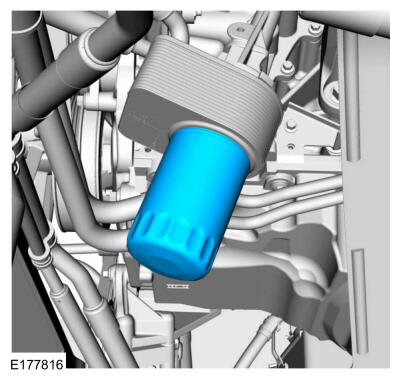

NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque: Stage 1: 5 Nm Stage 2: 180deg.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: INSTALLATION
Inspect and adjust the coolant level in the degas bottle.
Material: Antifreeze (WSS-M97B44-D)
Inspect and adjust the engine oil level.
Material: Engine Oil - 5W30 - Synthetic Blend (WSS-M2C946-B1)
