Exhaust Manifold RH: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with cast iron exhaust manifold
-

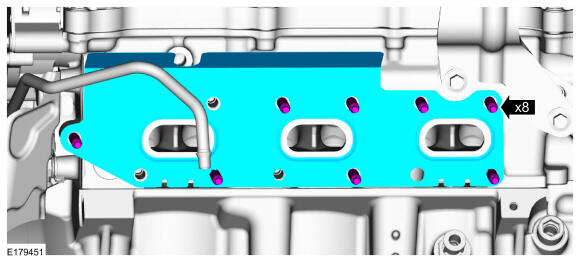

- Install new exhaust manifold studs.
Torque: 13 Nm
- Install a new gasket.
- Install new exhaust manifold studs.

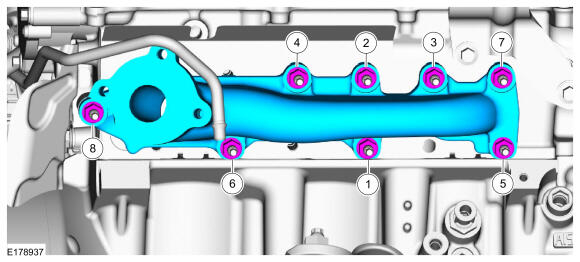

- Install the exhaust manifold and new nuts.
Torque: Stage 1: 19 Nm Stage 2: 25 Nm
Vehicles with stainless steel exhaust manifold
-

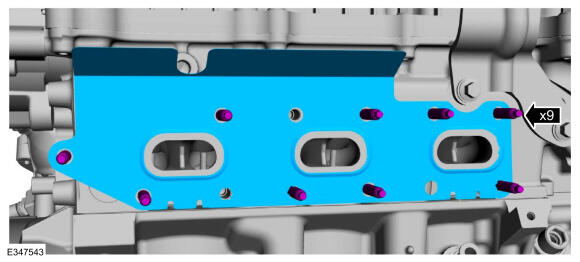

- Install new exhaust manifold studs.
Torque: 13 Nm
- Install a new gasket.
- Install new exhaust manifold studs.

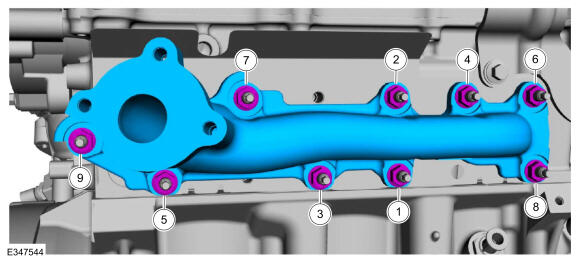

- Install the exhaust manifold and new nuts.
Torque: Stage 1: 19 Nm Stage 2: 22 Nm
All vehicles
- Install the RH turbocharger. Refer to: Turbocharger RH .
