Exhaust Manifold LH: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
2. Remove the LH turbocharger. Refer to: Turbocharger LH .

   Vehicles with cast iron exhaust manifold

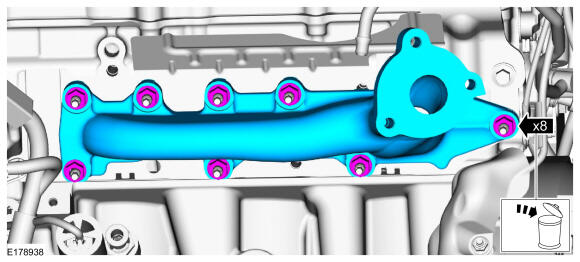

3. • Remove and discard the nuts.
   • Remove the exhaust manifold.

   Courtesy of FORD MOTOR COMPANY

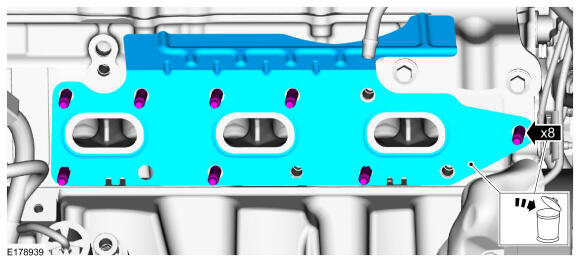

4. Remove and discard the exhaust manifold gasket and studs.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with stainless steel exhaust manifold

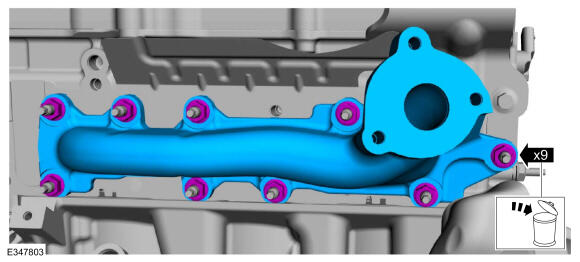

5. • Remove and discard the nuts.
   • Remove the exhaust manifold.

   Courtesy of FORD MOTOR COMPANY

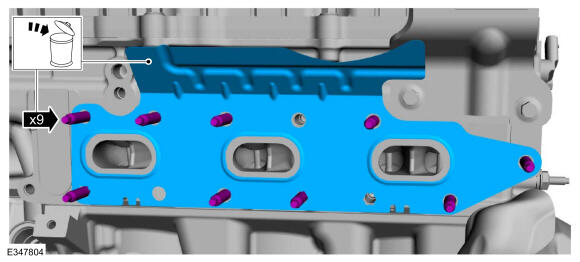

6. Remove and discard the exhaust manifold gasket and studs.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

7. • Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
   • NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

     Clean the exhaust manifold mating surface of the cylinder head with metal cleaner. Follow the directions on the packaging.

     Material: Metal Cleaner

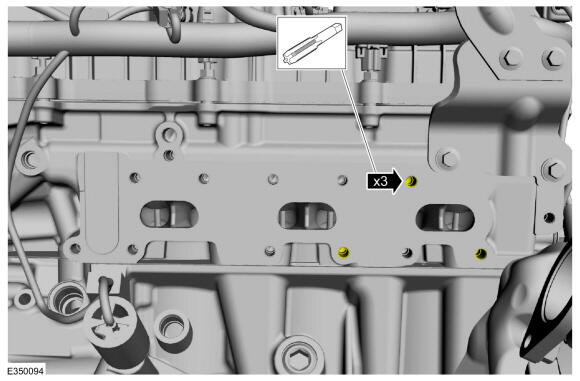

8. This step is only necessary if the original cast iron exhaust manifold is being replaced by a stainless steel exhaust manifold.Using a bottoming tap, clean the threads of the stud holes that were not used for the original exhaust manifold.

Courtesy of FORD MOTOR COMPANY
