Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with cast iron exhaust manifold

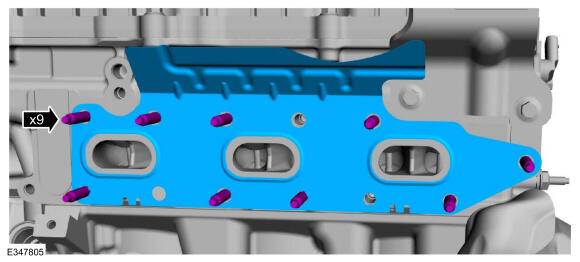

- Install new exhaust manifold studs.
  Torque: 13 Nm
- Install a new gasket.
Courtesy of FORD MOTOR COMPANY

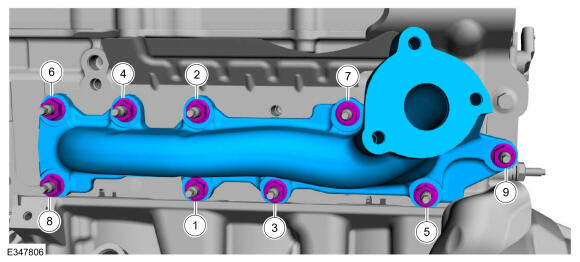

Install the exhaust manifold and new nuts.
Torque: Stage 1: 19 Nm Stage 2: 25 Nm

Courtesy of FORD MOTOR COMPANY

Vehicles with stainless steel exhaust manifold

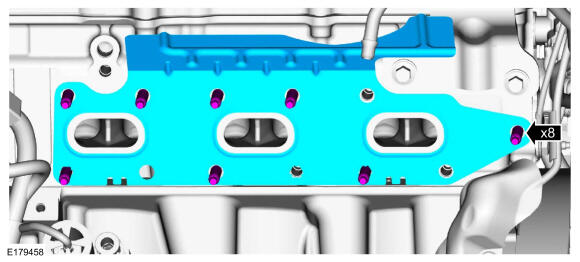

- Install new exhaust manifold studs.
  Torque: 13 Nm
- Install a new gasket.
Courtesy of FORD MOTOR COMPANY

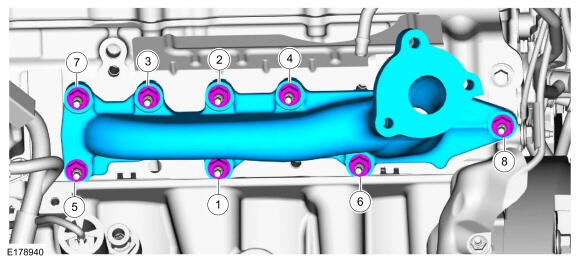

Install the exhaust manifold and new nuts.
Torque: Stage 1: 19 Nm Stage 2: 22 Nm

Courtesy of FORD MOTOR COMPANY

All vehicles
Install the LH turbocharger. Refer to: Turbocharger LH .
